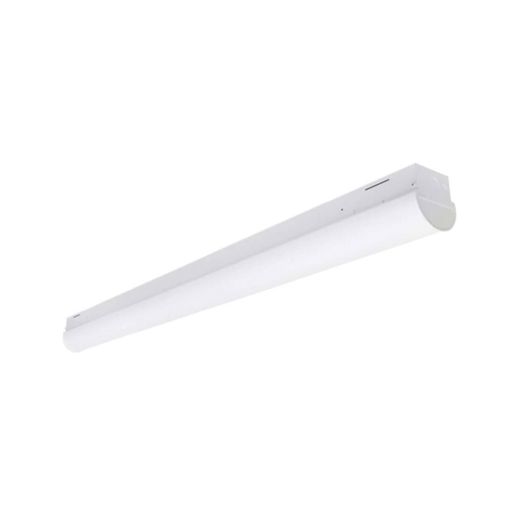

Venture® 4-foot LED Linear Strip Light | SM Series | CCT & Wattage Selectable | Up to 5985 Lumens | 120-277V | White | 6-pack
Ships in: 3-5 Days
$399.99
$66.67 EACH, PACK OF 6
SKU: SM10928-6
Replaces 1-Lamp T5HO 54W
Up to 5985 Lumens
Up to 5985 Lumens
Product Overview
Venture® Lighting LED Linear Strips with field selectable CCT & Wattage - 6-pack. CCT options are: 3500K, 4000K and 5000K and 3 different wattage settings (3 light levels) with a simple slide switch. These field-adjustable fixtures are preset to the highest wattage and 5000K CCT. UL listed for damp location, 5-year limited warranty. 6-pack.
Additional Benefits:
- Sold as a 6-pack
- Powder-coated for superior corrosion resistance
- Versatile fixture is supplied with an acrylic (PPMA) low glare frosted lens
- Knock-out locations are available on each end of the fixture as well as on top of the fixture for through-wiring
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: Venture® SM10928 Series Download File
- Instruction Manual: Venture® SM10928 Series Download File
- IES Files: SM10928 Series Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Residential, Retail, Task & Workshop Lighting
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications UL Listed, Damp Locations, Dimmable, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 47-5/16" L x 3-3/8" W x 3-5/8" H
- Housing White, powder-coated steel housing
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated frosted PMMA (polymethyl methacrylate) diffuser lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 5985 Lumens
- Mounting Details Suitable for surface mount or suspension mount applications. Each fixture is supplied with a pair of surface mount brackets. Fixtures are designed for individual or continuous row mounting.
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 34W/38W/45W
- Replaces 1 x F54T5HO
- Shipping Weight 37.80 (lbs.)
- Product Weight 37.80
- Typical Mounting Height 0 to 10 feet
- warranty 5 years
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
SM10928-6
Replaces 1-Lamp T5HO 54W
Up to 5985 Lumens
Up to 5985 Lumens
34W/38W/45W
Universal (120V - 277V)
5 years
Yes
UL Listed, Damp Locations, Dimmable, RoHS
6
White, powder-coated steel housing
Suitable for surface mount or suspension mount applications. Each fixture is supplied with a pair of surface mount brackets. Fixtures are designed for individual or continuous row mounting.
Integrated frosted PMMA (polymethyl methacrylate) diffuser lens
Selectable, 3500K, 4000K, 5000K
C-STRIP-B-LIN4-S56L-SCCT-UL-WH
Replaces 1 x F54T5HO
Up to 5650 Lumens
Up to 5650 Lumens
22W/33W/45W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
6
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3-mil thickness for superior corrosion resistance and maximum environmental durability.
Keyhole slots for surface mounting; or suspended mounting using hook and chain (sold separately)
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3000K, 4000K, 5000K
E-LSN05C-4U840
Replaces 1-Lamp T5HO fixtures
5200 Lumens
5200 Lumens
40W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
8
White powder coated steel housing
Keyhole slots designed for surface mounting to a ceiling or wall.
Integrated frosted polycarbonate diffuser lens
4000K
E-LSN05C-4U850
Replaces 1-Lamp T5HO fixtures
5200 Lumens
5200 Lumens
40W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
8
White powder coated steel housing
Keyhole slots designed for surface mounting to a ceiling or wall.
Integrated frosted polycarbonate diffuser lens
5000K
