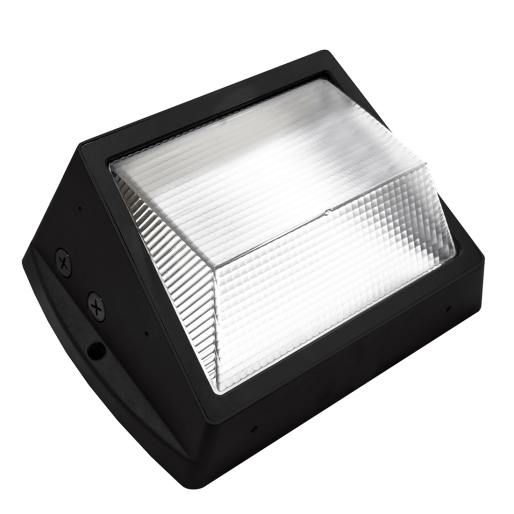

savr® Traditional Style LED Wall Pack | E-WPE Series | 22,158 Lumens | 150W | 5000K | Bronze
$109.99
SKU: E-WPE22A-F50BZ
Replaces 400W PSMH
22,158 Lumens
22,158 Lumens
Product Overview
Our savr® 150W Economy Traditional Style LED Wall Pack with 22,158 lumens, bronze housing, 5000K and 5-year limited warranty.
Additional Benefits:
- Super quick and easy install
- 0-10V Dimmable
- UV resistant polycarbonate refractor lens
- Up to 80% energy savings
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: E-WPE Series Download File
- IES File: E-WPE22A-F50BZ.IES Download File
- Spec Sheet: E-WPE Series Download File
Specifications
- Applications Entryways, General Area Lighting, Perimeter Lighting, Storage Facilities
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Certifications ETL Listed, Wet Locations, Dimmable, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 13-3/8" L x 9-7/8" W x 5-3/8" H
- Housing Bronze, die-cast aluminum
- Input Voltage Universal (120V - 277V)
- Lens Material UV resistant polycarbonate lens
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 22,158 Lumens
- Mounting Details Able to mount via j-box or surface conduit
- Operating Temperature Maximum 95°F (35°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 150W
- Replaces 400W PSMH
- Shipping Weight 6.90 (lbs.)
- Product Weight 5.40
- Typical Mounting Height 15 to 25 feet
- warranty 5-Year
