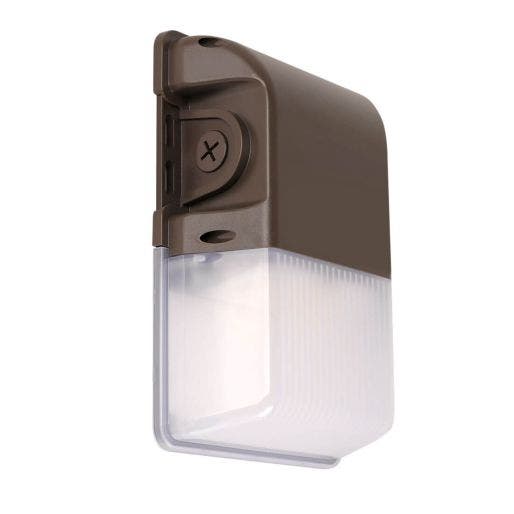

savr® LED Wall Mount (Mini LED Wall Pack) w/ Integrated Photocell | CCT & Wattage Selectable | E-WMP03 Series | Up to 3327 Lumens | Up to 24W | Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

Ships in: 3-5 Days

$47.99

Knock this price down to $43.19. Join e-cono+ for free today Sign up >.

SKU: E-WMP03A-SCCTBZ

Replaces 100W PSMH
Up to 3327 Lumens

Add to Favorites/Create a Quote

Product Overview

24W savr® LED Wall Mount/Mini LED Wall Pack with integrated photocell and selectable CCT & Wattage. Color temperature (CCT) selectable options of: 3000K, 4000K or 5000K. Wattage selectable options of: 24W, 19W or 15W. 3-year warranty.

Additional Benefits:

0-10v dimming with dimming leads available for use in the field
Included photocell
Super easy installation

Guides & Info

IES Files: E-WMP03 Series Download File
Spec Sheet: E-WMP03 Series Download File
Instruction Manual: E-WMP03 Series Download File

Specifications

Applications Commercial, Entryways, General Area Lighting, Residential, Security
FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
Certifications UL Listed, Dimmable, RoHS, IP65
Color Accuracy ≥ 80 CRI
Dimensions 6" L x 2-1/2" W x 8-3/4" H
Housing Bronze cast aluminum housing with powder coat finish
Input Voltage Universal (120V - 277V)
Lens Material Diffused polycarbonte lens
Lifespan Long life LEDs provide at least 70% of initial lumen output (L70 ) for 156,000 hours of operation, and at least 90% of initial lumen output (L90 ) for 47,000 hours of operation.
Light Output Up to 3327 Lumens
Mounting Details Very easy install for new construction or retrofit applications. Can be mounted to a j-box or by using surface conduit. 1/2" NPT knockout is located on side of the fixture.
Operating Temperature Maximum 122°F (50°C)
Operating Temperature Minimum -4°F(-20°C)
Power Consumption 24W
Replaces 100W PSMH
Shipping Weight 1.44 (lbs.)
Typical Mounting Height 10 to 15 feet
warranty 3 year

How much light do you need? Create a custom plan with our simple free tools.

INDOOR LIGHTING LAYOUT TOOL > OUTDOOR LIGHTING LAYOUT TOOL >

Product Comparison

Product

SKU

Short Description

Power Consumption

Input Voltage

warranty

Dimmable

Certifications

Housing

Mounting Details

Lens Material

Color Temperature (CCT)

Additional Documents

$47.99

E-WMP03A-SCCTBZ

Replaces 100W PSMH
Up to 3327 Lumens

24W

Universal (120V - 277V)

3 year

Yes

UL Listed, Dimmable, RoHS, IP65

Bronze cast aluminum housing with powder coat finish

Very easy install for new construction or retrofit applications. Can be mounted to a j-box or by using surface conduit. 1/2" NPT knockout is located on side of the fixture.

Diffused polycarbonte lens

Selectable, 3000K, 4000K, 5000K
