savr® LED Flat Panel w/Emergency Battery Backup | E-TFP-C Series | 2'x4' | CCT & Wattage Selectable | Up to 6600 Lumens | 120-277V | White | 2-Pack

Write a Review
Questions & Answers
Lighting Layout Tool

$319.99

$160.00 EACH, PACK OF 2

Knock this price down to $287.99. Join e-cono+ for free today Sign up >.

SKU: E-TFPS66C-24USCCTW-EB-2

Replaces 4-Lamp F32T8
Up to 6600 Lumens

Add to Favorites/Create a Quote

Product Overview

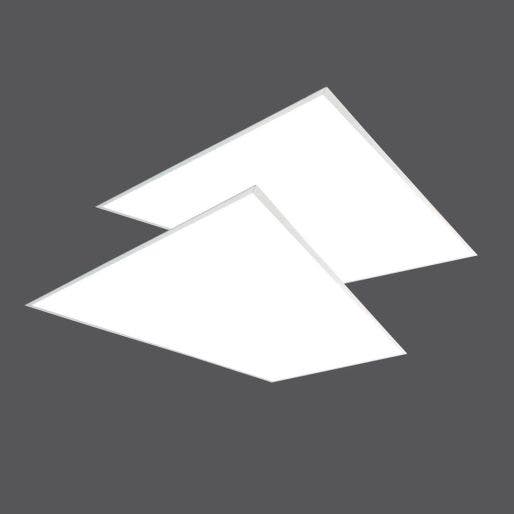

The savr® 2-pack LED Flat Panels feature field selectable CCT and wattage, providing excellent versatility to meet your application needs. The 2’x4’ flat panel delivers up to 6600 lumens, with CCT selectable options of: 3500K, 4000K and 5000K and wattage selectable options of: 30W/40W/50W. Integrated 8W emergency battery backup, included 5-year limited warranty.

Additional Benefits:

8W battery backup provides 1000 lumens in EB mode
Frameless design provides greater lighting surface than traditional style flat panels
Ultra-thin 1-5/8" profile
2-pack master cartons provide added protection vs. single flat panel packaging
Polystyrene diffuser lens for optimal light uniformity and glare reduction

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Spec sheet: E-TFP-C Series Download File
Instruction Manual: E-TFP-C-EB-2 Series Download File
IES Files: E-TFPS66C-24-SCCT Series Download File

Specifications

Applications Commercial, Educational Setting, Offices, Retail
Factory Installed Emergency Backup Yes
Emergency Backup Yes
FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
Certifications cULus, Damp Locations, Dimmable, DLC Premium, RoHS
Color Accuracy ≥ 80 CRI
Dimensions 47-3/4" L x 23-3/4" W x 1-5/8" H
Housing Steel construction, white polyester powder-coated finish
Input Voltage Universal (120V - 277V)
Lens Material Integrated PMMA lens and polystyrene diffuser
Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output Up to 6600 Lumens
Mounting Details Recessed, installs into conventional grid celings. Can also be surfaced mounted with the use of surface mount kit accessory
Operating Temperature Maximum 95°F (35°C)
Operating Temperature Minimum -4°F (-20°C)
Power Consumption 30/40/50W
Replaces 4 x F32T8
Shipping Weight 8.90 (lbs.)
Typical Mounting Height 0 to 10 feet
warranty 5-Year
