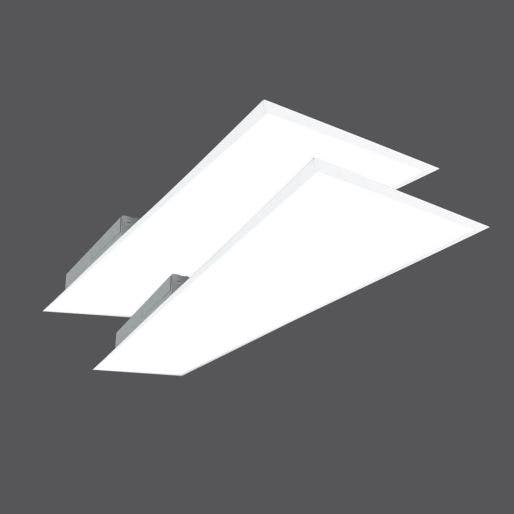

savr® LED Flat Panel w/Emergency Battery Backup | E-TFP-C Series | 1'x4' | CCT & Wattage Selectable | Up to 5200 Lumens | 120-277V | White | 2-Pack
$299.99
$150.00 EACH, PACK OF 2
SKU: E-TFPS52C-14USCCTW-EB-2
Replaces 2-Lamp F32T8
Up to 5200 Lumens
Up to 5200 Lumens
Product Overview
The savr® 2-pack LED Flat Panels feature field selectable CCT and wattage, providing excellent versatility to meet your application needs. The 1’x4’ flat panel delivers up to 5200 lumens, with CCT selectable options of: 3500K, 4000K and 5000K and wattage selectable options of: 20W/30W/40W. Integrated 8W emergency battery backup, included 5-year limited warranty.
Additional Benefits:
- 8W battery backup provides 1000 lumens in EB mode
- Frameless design provides greater lighting surface than traditional style flat panels
- Ultra-thin 1-5/8" profile
- 2-pack master cartons provide added protection vs. single flat panel packaging
- Polystyrene diffuser lens for optimal light uniformity and glare reduction
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES Files: E-TFPS52C-14USCCTW Download File
- Spec sheet: E-TFP-C Series Download File
- Instruction Manual: E-TFP-C-EB-2 Series Download File
Specifications
- Applications Commercial, Educational Setting, Offices, Retail
- Factory Installed Emergency Backup Yes
- Emergency Backup Yes
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Damp Locations, Dimmable, DLC Premium, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 47-3/4" L x 11-7/8" W x 1-5/8" H
- Housing Steel construction, white polyester powder-coated finish
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated PMMA lens and polystyrene diffuser
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 5200 Lumens
- Mounting Details Recessed, installs into conventional grid celings. Can also be surfaced mounted with the use of surface mount kit accessory
- Operating Temperature Maximum 95°F (35°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 20/30/40W
- Replaces 2 x F32T8
- Shipping Weight 5.35 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5-Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
E-TFPS52C-14USCCTW-EB-2
Replaces 2-Lamp F32T8
Up to 5200 Lumens
Up to 5200 Lumens
20/30/40W
Universal (120V - 277V)
5-Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
Steel construction, white polyester powder-coated finish
Recessed, installs into conventional grid celings. Can also be surfaced mounted with the use of surface mount kit accessory
Integrated PMMA lens and polystyrene diffuser
Selectable, 3500K, 4000K, 5000K
