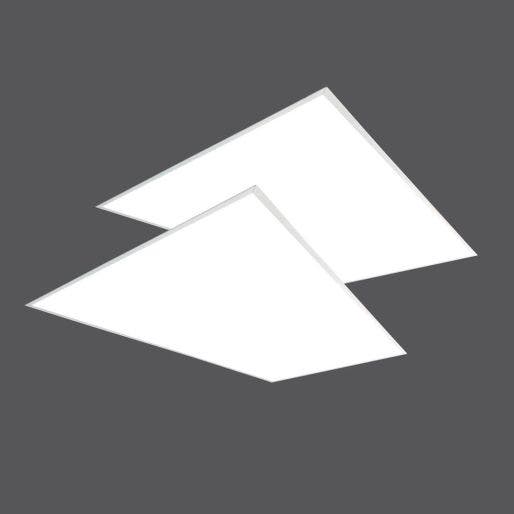

savr® LED Flat Panel | E-TFP-C Series | 2'x4' | CCT & Wattage Selectable | Up to 6600 Lumens | 120-277V | White | 2-Pack
$119.99
$60.00 EACH, PACK OF 2
SKU: E-TFPS66C-24USCCTW-2
Replaces 4-Lamp F32T8
Up to 6600 Lumens
Up to 6600 Lumens
Product Overview
The savr® 2-pack LED Flat Panels feature field selectable CCT and wattage, providing excellent versatility to meet your application needs. The 2’x4’ flat panel delivers up to 6600 lumens, with CCT selectable options of: 3500K, 4000K and 5000K and wattage selectable options of: 30W/40W/50W. Included 5-year limited warranty.
Additional Benefits:
- Frameless design provides greater lighting surface than traditional style flat panels
- Ultra-thin 1-5/8" profile
- 2-pack master cartons provide added protection vs. single flat panel packaging
- Polystyrene diffuser lens for optimal light uniformity and glare reduction
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec sheet: E-TFP-C Series Download File
- Instruction Manual: E-TFP-C Series (without EB) Download File
Specifications
- Applications Commercial, Educational Setting, Offices, Retail
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Damp Locations, Dimmable, DLC Premium, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 47-3/4" L x 23-3/4" W x 1-5/8" H
- Housing Steel construction, white polyester powder-coated finish
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated PMMA lens and polystyrene diffuser
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 6600 Lumens
- Mounting Details Recessed, installs into conventional grid celings. Can also be surfaced mounted with the use of surface mount kit accessory
- Operating Temperature Maximum 95°F (35°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 30/40/50W
- Replaces 4 x F32T8
- Shipping Weight 7.31 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5-Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
savr® LED Flat Panel | E-TFP-C Series | 2'x4' | CCT & Wattage Selectable | Up to 6600 Lumens | 120-277V | White | 2-Pack $119.99
$60.00 EACH, PACK OF 2
E-TFPS66C-24USCCTW-2
Replaces 4-Lamp F32T8
Up to 6600 Lumens
Up to 6600 Lumens
30/40/50W
Universal (120V - 277V)
5-Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
Steel construction, white polyester powder-coated finish
Recessed, installs into conventional grid celings. Can also be surfaced mounted with the use of surface mount kit accessory
Integrated PMMA lens and polystyrene diffuser
Selectable, 3500K, 4000K, 5000K
E-TFPS52D-24USCCTW-2
Replaces 4-Lamp F32T8
Up to 5150 Lumens
Up to 5150 Lumens
24W/33W/38W
Universal (120V - 277V)
5 year
Yes
cULus, Damp Locations, Dimmable, RoHS
White, steel frame and steel housing backplate
Mount in traditional grid ceiling or suspended mount using attached hanging brackets. For mounting in plaster or other hard ceilings, see Mounting Kits
PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency, and longevity
Selectable, 3500K, 4000K, 5000K
E-TFPS52D-24USCCTW-24
Replaces 3-Lamp F17T8
Up to 5150 Lumens
Sold as pallet quantity
Up to 5150 Lumens
Sold as pallet quantity
24W/33W/38W
Universal (120V - 277V)
5 year
Yes
cULus, Damp Locations, Dimmable, RoHS
White, steel frame and steel housing backplate
Mount in traditional grid ceiling or suspended mount using attached hanging brackets. For mounting in plaster or other hard ceilings, see Mounting Kits
PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency, and longevity
Selectable, 3500K, 4000K, 5000K
E-TFPS52D-24USCCTW-EB
Replaces 4-Lamp F32T8
Up to 5150 Lumens
Up to 5150 Lumens
24W/33W/38W
Universal (120V - 277V)
5 year
Yes
cULus, Damp Locations, Dimmable, RoHS
White, steel frame and steel housing backplate
Mount in traditional grid ceiling or suspended mount using attached hanging brackets. For mounting in plaster or other hard ceilings, see Mounting Kits
PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency, and longevity
Selectable, 3500K, 4000K, 5000K
