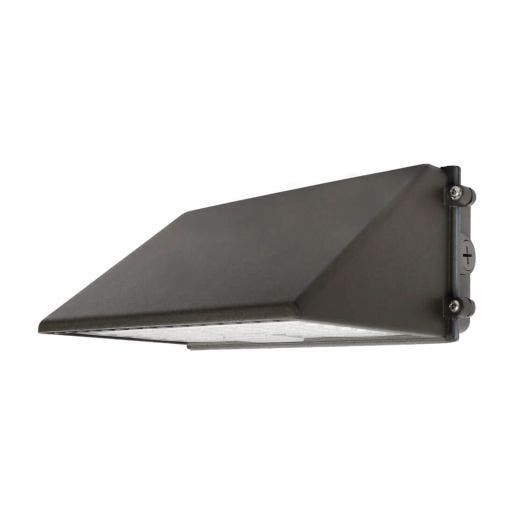

savr® Cutoff LED Wall Pack | E-WFC-B Series | 6185 Lumens | 40W | 5000K | Bronze
$64.99
SKU: E-WFC06B-F50BZ
Replaces 150W MH
6185 Lumens
6185 Lumens
Product Overview
40W savr® Cutoff LED Wall Pack, 6185 delivered lumens, bronze housing, 5000K, 3-year limited warranty.
Additional Benefits:
- Durable die-cast aluminum housing with bronze powder coated finish for corrosion resistance; stainless steel hardware
- UV-resistant polycarbonate refractor lens
- Architectural low-profile design
- Fully gasketed and sealed to provide wet location protection
- 0-10V dimming capable
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: E-WFC-B Series Download File
- IES File: E-WFC06B-F50BZ Download File
- Spec sheet: E-WFC-B Series Download File
Specifications
- Applications Commercial, Perimeter Lighting, Security
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 4
- Certifications ETL Listed, Wet Locations, Dimmable, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 12-3/4" W x 7-1/2" W x 5-1/8" H
- Housing Durable die-cast aluminum housing with bronze powder coat finish to corrosion resistance
- Input Voltage Universal (120V - 277V)
- Lens Material UV-resistant polycarbonate lens
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 6185 Lumens
- Mounting Details Can be mounted over a 3" octagonal or 4" square or octagonal j-box. Can also be mounted via surface conduit feed through one of the 3 x 1/2" knockouts located on the backbox.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 40W
- Replaces 150W MH
- Shipping Weight 4.60 (lbs.)
- Product Weight 3.70
- Typical Mounting Height 10 to 15 feet
- warranty 3 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
E-WFC06B-F50BZ
Replaces 150W MH
6185 Lumens
6185 Lumens
40W
Universal (120V - 277V)
3 Year
Yes
ETL Listed, Wet Locations, Dimmable, RoHS
4
Durable die-cast aluminum housing with bronze powder coat finish to corrosion resistance
Can be mounted over a 3" octagonal or 4" square or octagonal j-box. Can also be mounted via surface conduit feed through one of the 3 x 1/2" knockouts located on the backbox.
UV-resistant polycarbonate lens
5000K
GKOWPG245W27V50KD
Replaces 175W MH
6450 Lumens
6450 Lumens
45W
Universal (120V through 277V Operation)
5 Year
No
UL Listed, Wet Locations, DLC Standard, RoHS
N/A
Bronze, Rugged die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing
5000K
C-WP-C-RDC-S6L-SCCT-DB
Replaces 175W MH
Up to 6000 Lumens
Up to 6000 Lumens
Up to 42W
Universal (120V - 277V)
5-year
No
cULus, Wet Locations, DLC Standard, RoHS
6
Heavy duty die-cast aluminum with a durable powder coat dark bronze finish.
1/2-inch threaded knockouts provided for conduit entry or mount over a recessed j-box. Knockouts are located on both sides and the top of the back box.
Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency.
Selectable, 3000K, 4000K, 5000K
