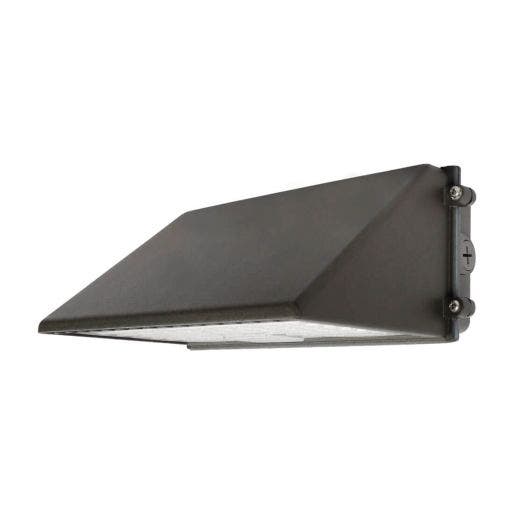

savr® Cutoff LED Wall Pack | E-WFC-B Series | 14,954 Lumens | 100W | 5000K | Bronze
$99.99
SKU: E-WFC15B-F50BZ
Replaces 400W MH
14,954 Lumens
14,954 Lumens
Product Overview
100W savr® Cutoff LED Wall Pack, 14,954 delivered lumens, bronze housing, 5000K, 3-year limited warranty.
Additional Benefits:
- Durable die-cast aluminum housing with bronze powder coated finish for corrosion resistance; stainless steel hardware
- UV-resistant polycarbonate refractor lens
- Architectural low-profile design
- Fully gasketed and sealed to provide wet location protection
- 0-10V dimming capable
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: E-WFC-B Series Download File
- IES File: E-WFC15B-F50BZ Download File
- Spec sheet: E-WFC-B Series Download File
Specifications
- Applications Commercial, Perimeter Lighting, Security
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 4
- Certifications ETL Listed, Wet Locations, Dimmable, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 12-3/4" W x 7-1/2" W x 5-1/8" H
- Housing Durable die-cast aluminum housing with bronze powder coat finish to corrosion resistance
- Input Voltage Universal (120V - 277V)
- Lens Material UV-resistant polycarbonate lens
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 14,954 Lumens
- Mounting Details Can be mounted over a 3" octagonal or 4" square or octagonal j-box. Can also be mounted via surface conduit feed through one of the 3 x 1/2" knockouts located on the backbox.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 100W
- Replaces 400W MH
- Shipping Weight 4.70 (lbs.)
- Product Weight 3.9 lbs
- Typical Mounting Height 15 to 25 feet
- warranty 3 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
E-WFC15B-F50BZ
Replaces 400W MH
14,954 Lumens
14,954 Lumens
100W
Universal (120V - 277V)
3 Year
Yes
ETL Listed, Wet Locations, Dimmable, RoHS
4
Durable die-cast aluminum housing with bronze powder coat finish to corrosion resistance
Can be mounted over a 3" octagonal or 4" square or octagonal j-box. Can also be mounted via surface conduit feed through one of the 3 x 1/2" knockouts located on the backbox.
UV-resistant polycarbonate lens
5000K
C-WP-A-ACWP-S17L-SCCT-BZ
Replaces 400W MH
Up to 16,700 Lumens
Up to 16,700 Lumens
80W/90W/100W/110W/120W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
2
Bronze die cast aluminum housing with heat fins to dissapate heat and improve life of the product.
Knockouts provided for mounting over a 3-1/2" or 4" octagonal or single gang junction box. Also comes with appropriate knockouts for mounting using conduit.
Integrated polycarbonate diffuser lens with individual optics for peak performance
Selectable, 3000K, 4000K, 5000K
C-WP-C-RDC-S16L-SCCT-DB
Replaces 400W MH
Up to 16,000 Lumens
Emergency battery backup option available
Up to 16,000 Lumens
Emergency battery backup option available
Up to 110W
Universal (120V - 277V)
5-year
No
cULus, Wet Locations, DLC Standard, RoHS
2
Heavy duty die-cast aluminum with a durable powder coat dark bronze finish.
1/2-inch threaded knockouts provided for conduit entry or mount over a recessed j-box. Knockouts are located on both sides and the top of the back box.
Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency.
Selectable, 3000K, 4000K, 5000K
