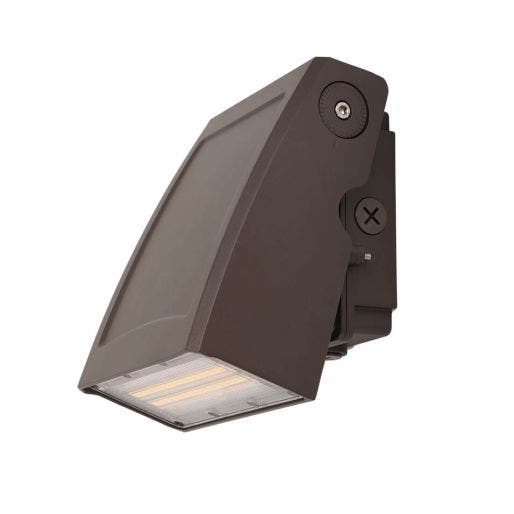

savr® Adjustable Cutoff LED Wall Pack | CCT & Wattage Selectable | E-WPA Series | Up to 5084 Lumens | Up to 35W | Bronze
Ships in: 3-5 Days
$89.99
SKU: E-WPA05A-SCCTBZ
Replaces 150W PSMH
Up to 5084 Lumens
Up to 5084 Lumens
Product Overview
35W savr® Adjustable Cutoff LED Wall Pack with CCT & Wattage Selectability. Delivers up to 5084 lumens, CCT selectable options of: 3000K, 4000K or 5000K, wattage selectable options of: 20W, 25W or 35W, 5-year warranty.
Additional Benefits:
- Adjustable housing can adjust in 10° increments up to 90°
- IP65 to prevent water and dust ingress
- 0-10V Dimmable
- CCT Selectable: 3000K, 4000K and 5000K
- Wattage Selectable: 20W, 25W or 35W
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: E-WPA Series Download File
- IES Files: E-WPA Series Download File
- Spec sheet: E-WPA Series Download File
- Driver Box Line Drawing - E-WPA05 Download File
Specifications
- Applications Perimeter Lighting, Security, Storefront Lighting, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Certifications UL Listed, Wet Locations, Dimmable, RoHS, IP65
- Color Accuracy ≥ 80 CRI
- Dimensions 6-1/2" L x 4" W x 8" H
- Housing Cast aluminum housing with bronze, powder coat finish
- Input Voltage Universal (120V - 277V)
- Lens Material Polycarbonate lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 5084 Lumens
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 20W, 25W or 35W
- Replaces 150W PSMH
- Shipping Weight 3.00 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Lens Material
Color Temperature (CCT)
Additional Documents
E-WPA05A-SCCTBZ
Replaces 150W PSMH
Up to 5084 Lumens
Up to 5084 Lumens
20W, 25W or 35W
Universal (120V - 277V)
5 Year
Yes
UL Listed, Wet Locations, Dimmable, RoHS, IP65
Cast aluminum housing with bronze, powder coat finish
Polycarbonate lens
Selectable, 3000K, 4000K, 5000K
C-WP-C-RDC-S3L-SCCT-DB
Replaces 100W PSMH
Up to 3300 Lumens
Up to 3300 Lumens
Up to 23W
Universal (120V - 277V)
5-year
No
cULus, Wet Locations, DLC Standard, RoHS
Heavy duty die-cast aluminum with a durable powder coat dark bronze finish.
Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency.
Selectable, 3000K, 4000K, 5000K
C-WP-C-RDC-S6L-SCCT-DB
Replaces 175W MH
Up to 6000 Lumens
Up to 6000 Lumens
Up to 42W
Universal (120V - 277V)
5-year
No
cULus, Wet Locations, DLC Standard, RoHS
Heavy duty die-cast aluminum with a durable powder coat dark bronze finish.
Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency.
Selectable, 3000K, 4000K, 5000K
