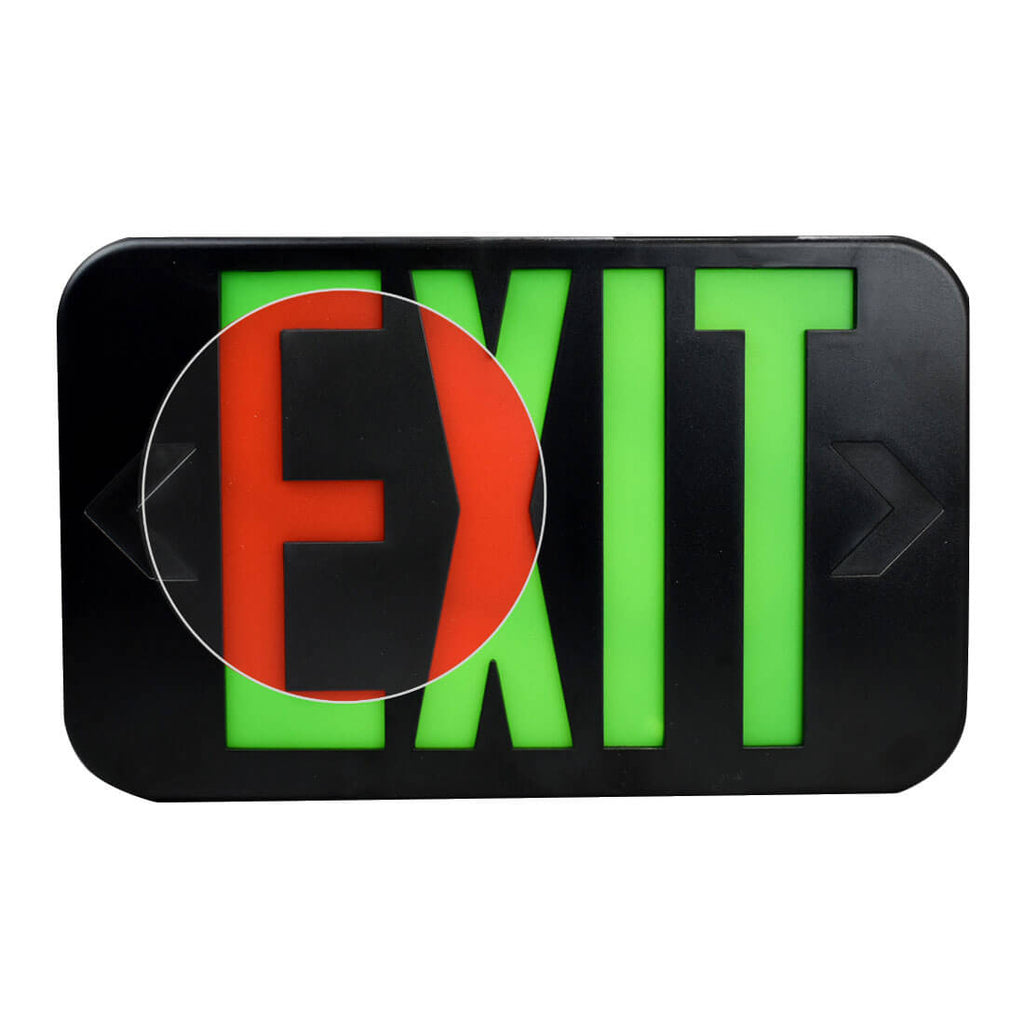

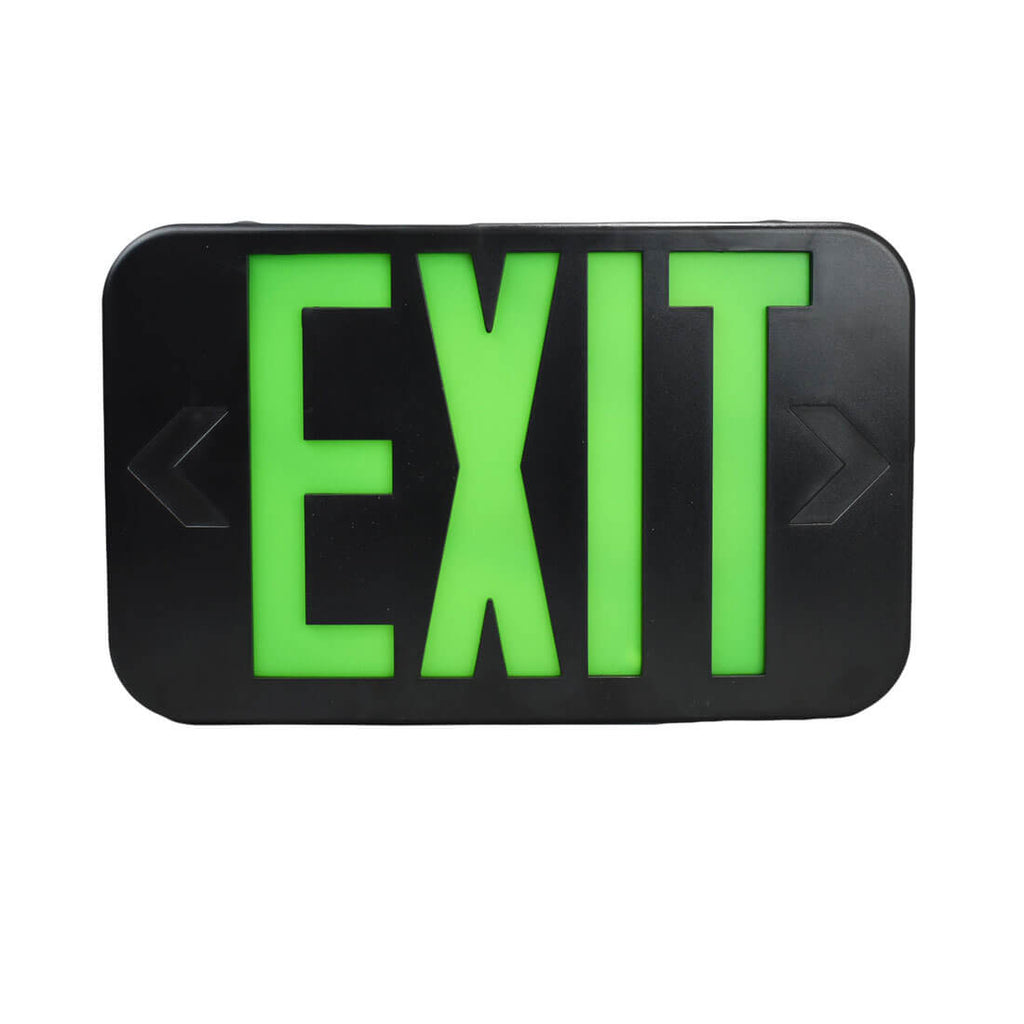

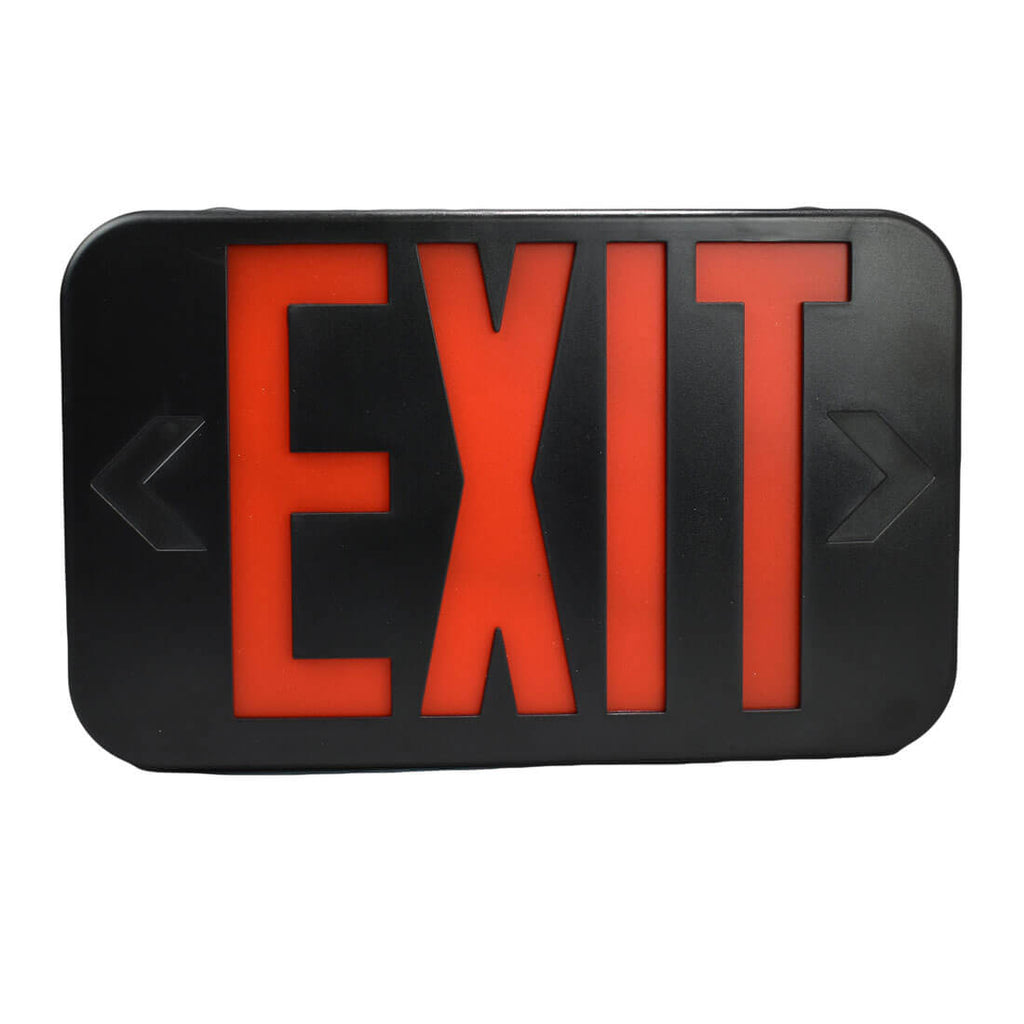

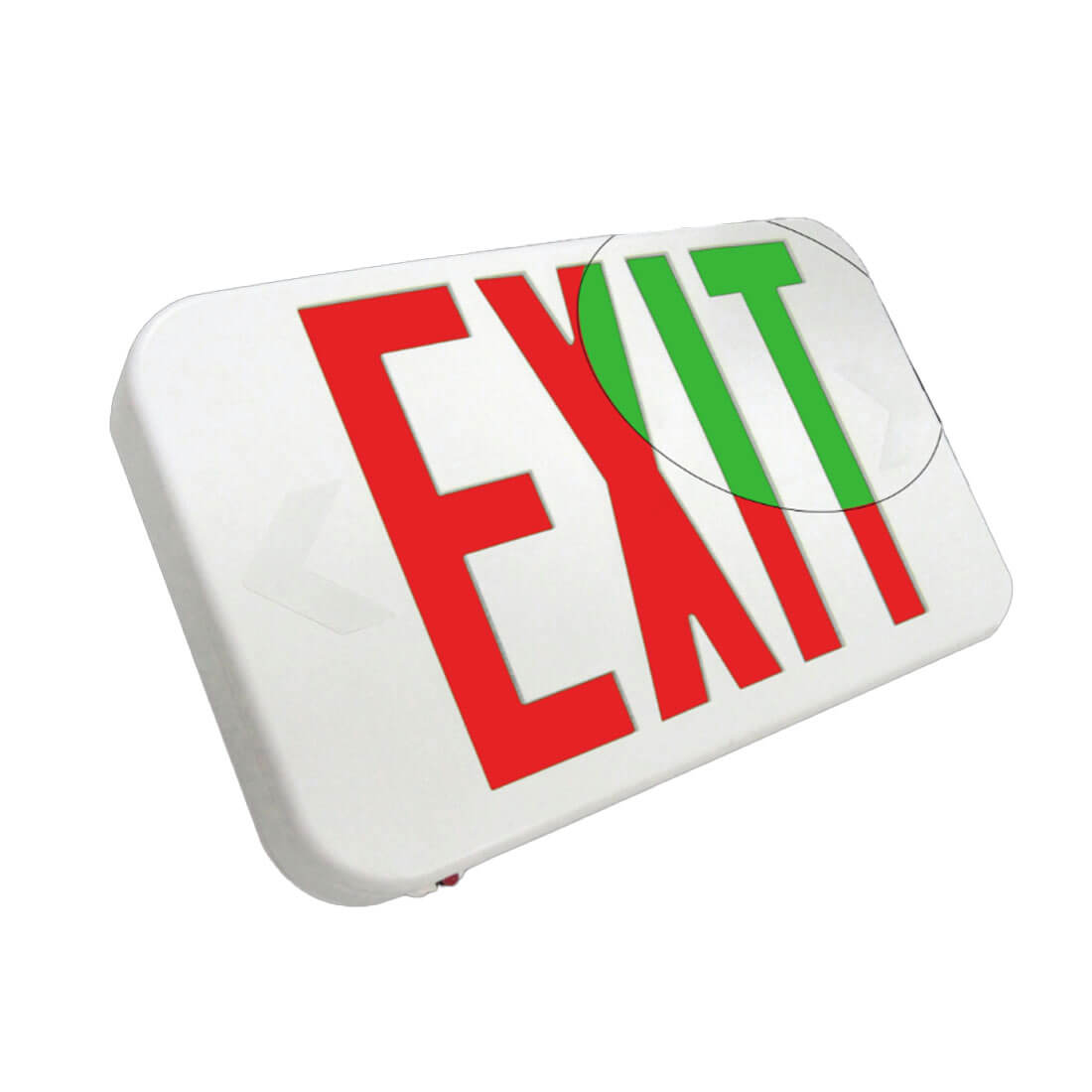

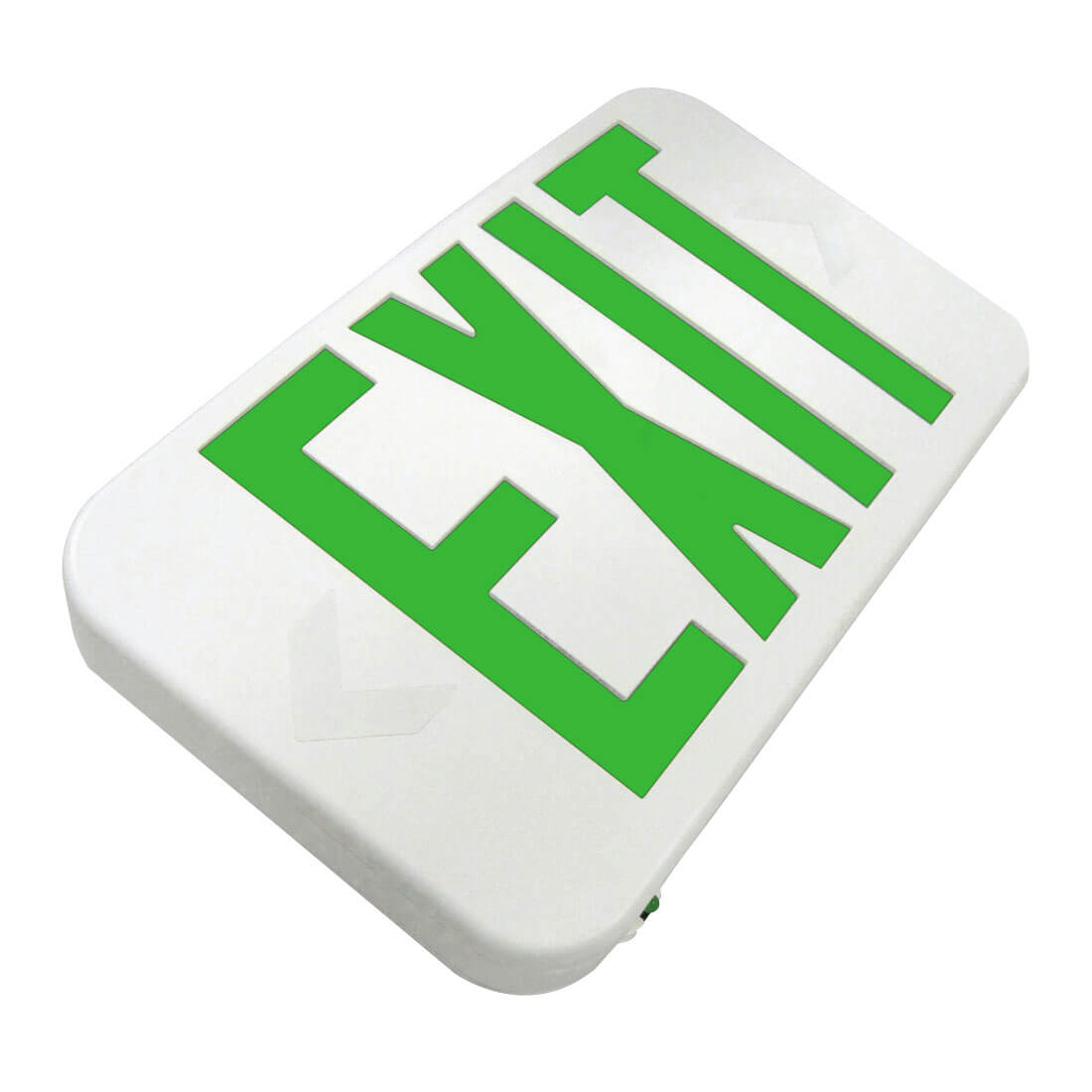

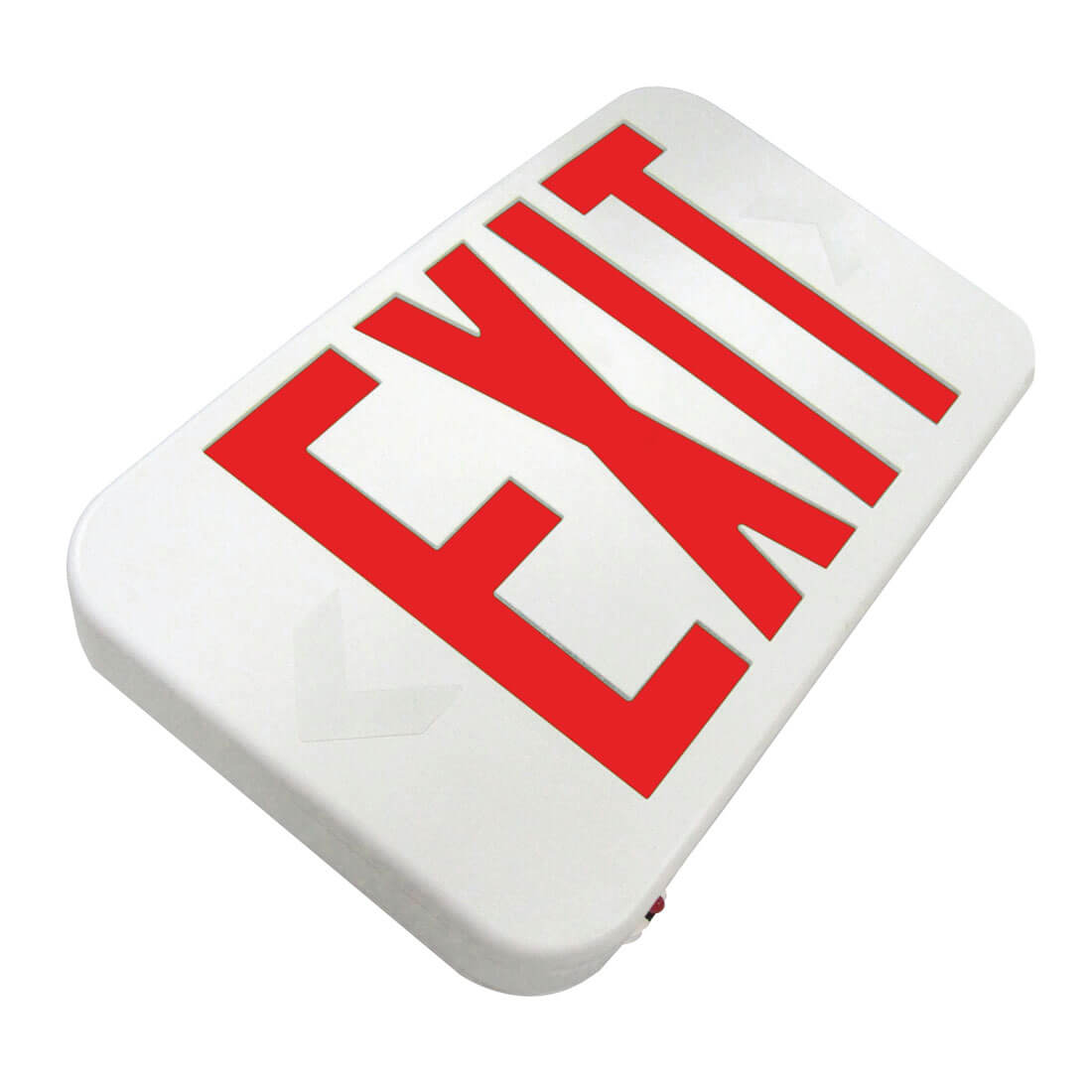

C-Lite LED Compact Exit Sign with black or white housing. Both red and green letters, single or double face, battery backup, manual-test diagnostics, UL listed, 5-year limited warranty.

Additional Benefits:

Includes sealed, 3.6V maintenance-free nickel cadmium battery backup (90 min.), hardware and mounting plate
Meets Title 20, UL924, NFPA 101 Life Safety Code, NEC & OSHA codes
Both red and green letters provided

Product Overview

Both red & green letters are included.

Documents

Specifications

Click to hide or show content

Light Output

154

Wattage

Voltage

Universal (120v - 277v)

Operating Temp. Min

32°F (0°C)

Operating Temp. Max

122°F (50°C)

Product Dimensions

11-5/8" L x 7-1/18" H x 1-7/8" D

Product Weight

2.2 lbs

Finish Color

Black

Mounting Details

Snap-in canopy plate provided for top and side/end mounting. Back faceplate with universal knock-out pattern provided for surface mount

Mounting Options

Junction Box

Typical Mounting Height

0 to 10 feet

Housing

High-impact resistant thermoplastic in black finish. Injection-molded, engineering grade, 5VA flame retardant.

Self-Test Diagnostics

No - Manual Test

Case Quantity

Certifications

UL Listed

Warranty

5 Year

⚠️
