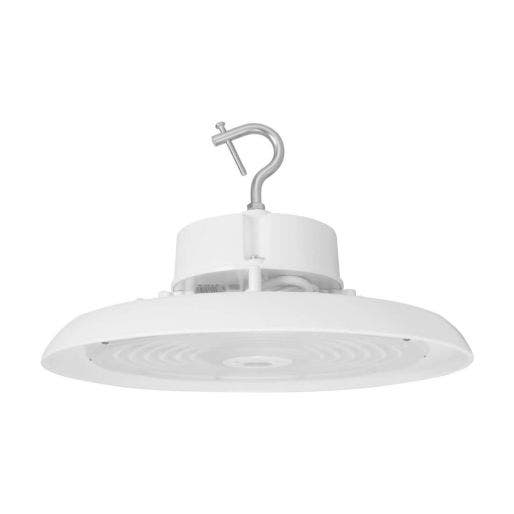

NICOR® Round LED High Bay Light | HBC4 Series | 34,935 Lumens | 5000K | 241W | 120-277V | White
Ships in: 1-3 Days
$119.97
SKU: HBC4240U508WH
Replaces 400W PSMH
34,935 Lumens
34,935 Lumens
Product Overview
241W NICOR® Round LED High Bay, delivers 34,935 lumens, 5000K, white housing, 5-year limited warranty.
Additional benefits:
- Off-board driver and vented aluminum heatsink to manage heat
- 0-10 Dimmable
- Includes M10 threaded hook with locking bolt for secure mounting
NOTE: Not all product configurations listed on the product specification sheet may be available on e-conolight.com. See a SKU that's not on our website that you'd like to purchase? Please call 888-243-9445 for assistance.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: NICOR® HBC4 Series Download File
- Instruction Manual: NICOR® HBC4 Series Download File
- IES Files: HBC4240U508 Download File
Specifications
- Applications Auto Dealerships, Gymnasium, Industrial, Manufacturing, Retail, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Color Accuracy ≥ 80 CRI
- Dimensions 14-1/8" Dia X 8-7/8" H
- Housing Die-cast aluminum housing and heatsink, with a white polyester powder-coat finish
- Input Voltage Universal (120V - 277V)
- Lens Material Polycarbonate lens
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 34,935 Lumens
- Mounting Details Included 6-foot power cord and M10 threaded hook with locking bolt
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 241W
- Replaces 400W PSMH
- Shipping Weight 10.60 (lbs.)
- Product Weight 8.05 lbs
- Typical Mounting Height > 25 feet
- warranty 5 year
