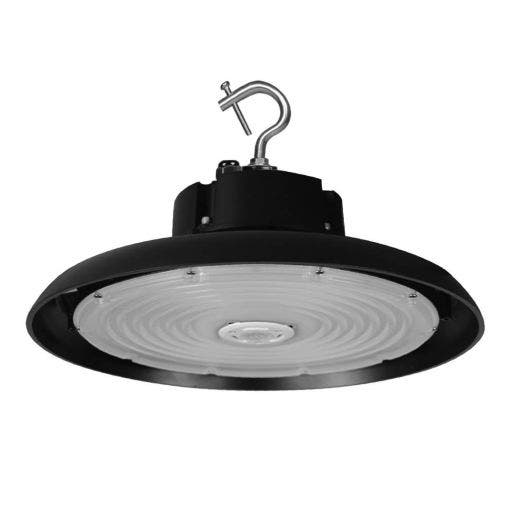

NICOR® Round LED High Bay Light | HBC4 Series | 34,935 Lumens | 5000K | 241W | 120-277V | Black
Ships in: 1-3 Days
$119.97
SKU: HBC4240U508BK
Replaces 400W PSMH
34,935 Lumens
34,935 Lumens
Product Overview
241W NICOR® Round LED High Bay, delivers 34,935 lumens, 5000K, black housing, 5-year limited warranty.
Additional benefits:
- Off-board driver and vented aluminum heatsink to manage heat
- 0-10 Dimmable
- Includes M10 threaded hook with locking bolt for secure mounting
NOTE: Not all product configurations listed on the product specification sheet may be available on e-conolight.com. See a SKU that's not on our website that you'd like to purchase? Please call 888-243-9445 for assistance.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: NICOR® HBC4 Series Download File
- Instruction Manual: NICOR® HBC4 Series Download File
- IES Files: HBC4240U508 Download File
Specifications
- Applications Auto Dealerships, Gymnasium, Industrial, Manufacturing, Retail, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Color Accuracy ≥ 80 CRI
- Dimensions 14-1/8" Dia X 8-7/8" H
- Housing Die-cast aluminum housing and heatsink, with a black polyester powder-coat finish
- Input Voltage Universal (120V - 277V)
- Lens Material Polycarbonate lens
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 34,935 Lumens
- Mounting Details Included 6-foot power cord and M10 threaded hook with locking bolt
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 241W
- Replaces 400W PSMH
- Shipping Weight 10.60 (lbs.)
- Product Weight 8.05 lbs
- Typical Mounting Height > 25 feet
- warranty 5 year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
HBC4240U508BK
Replaces 400W PSMH
34,935 Lumens
34,935 Lumens
241W
Universal (120V - 277V)
5 year
Yes
Die-cast aluminum housing and heatsink, with a black polyester powder-coat finish
Included 6-foot power cord and M10 threaded hook with locking bolt
Polycarbonate lens
5000K
C-HB-D-RD-S35L-SCCT-UL-BK
Replaces up to 400W PSMH
Up to 35,000 Lumens
Up to 35,000 Lumens
150/200/240W
Universal (120V - 277V)
5 year
Yes
Black powder coated, die-cast aluminum housing
M10 threaded eye-bolt standard. Pendant mount hook and yoke mount options available (sold separately)
Clear Polycarbonate
Selectable, 4000K, 5000K
C-HB-C-RD-S36L-SCCT-UL-BK
Replaces up to 400W PSMH
Up to 36,000 Lumens
Up to 36,000 Lumens
150W/180W/200W/240W
Universal (120V - 277V)
5 year
Yes
Black powder coated, die-cast aluminum housing
M10 threaded hook with locking screw included
Clear polycarbonate
3000K, 4000K, 5000K
