NICOR® 8.5W Emergency Driver | EMB80 Series | Red
Ships in: Next Business Day
$144.99
SKU: EMB80-10-UNV
For use with HBL, TPE, T4A, T5C & T6C series.
Product Overview

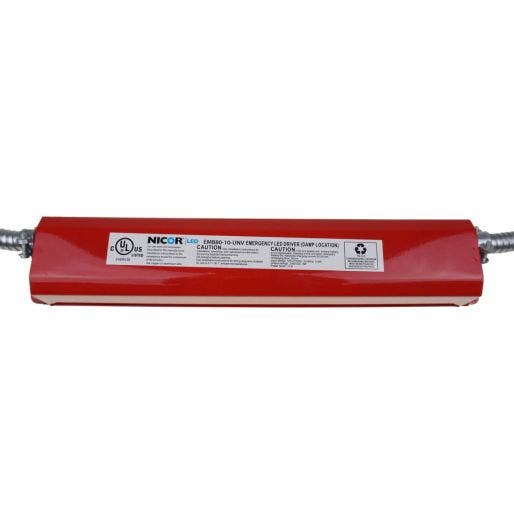

NICOR® 8.5W LED emergency driver for factory or field installations that enables normal and emergency operation of a LED fixture. During a power failure, the EMB80 activates emergency mode to maintain 8.5 watts of output power to the fixture for a minimum of 90 minutes without light degradation. The EMB80 contains a battery, charger, and converter circuit in a single housing. Also includes a test button and button installation face plate. Red, cULus Listed for damp locations.
Features
Housing:
- Heavy duty steel case
- Red, powder coat finish
Electrical:
- Long life high temperature Ni-Cad battery
- Single piece test switch/charge indicator included
- Constant power design provides consistent lumen output for >90 minutes
- 24 hour recharge time
Mounting:
- For use with switched or unswitched fixtures
- UL Classified for factory and field installation
cULus listed:
- Damp locations
Warranty
- 3-year limited
Recommended Use
- Indoor
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: EMB80 Download File
- Instruction Manual: EMB80 Download File
Specifications
- Certifications cULus, Damp Locations
- Dimensions 13"L x 2.25"W
- Operating Temperature Minimum 32°F (0°C) to 122°F (50°C)
- Power Consumption 8.5W
- Shipping Weight 3.10 (lbs.)
- warranty 3 Year
