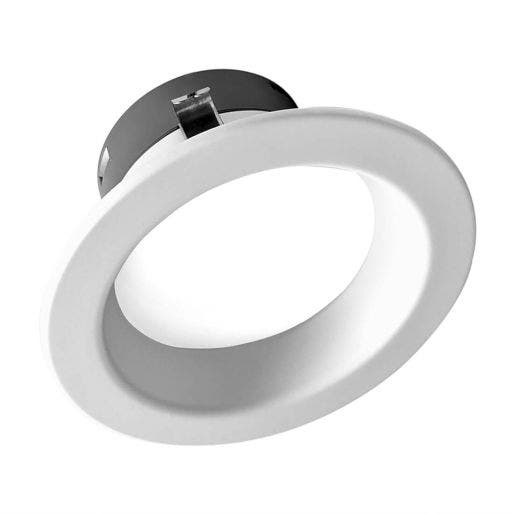

NICOR® 4-inch LED Downlight | DLR Series | CCT Selectable | Up to 758 Lumens | 7.9W | White
Ships in: Next Business Day
Your Price $19.99 $20.99
SKU: DLR4607120SWH
Replaces 60W Incandescent
Up to 758 Lumens
Up to 758 Lumens
Product Overview
Replaces 60-watt Incandescent. 7.9W, 4-inch LED Downlight with the ability to adjust the CCT to 2700K, 3000K, 3500K, 4000K, or 5000K. Delivers up to 758 lumens, cETLus Listed and dimmable down to 5%. 5-year limited warranty.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: DLR4607120SWH 2700K Download File
- IES File: DLR4607120SWH 3000K Download File
- IES File: DLR4607120SWH 3500K Download File
- IES File: DLR4607120SWH 4000K Download File
- IES File: DLR4607120SWH 5000K Download File
- Spec Sheet: DLR4_DLR56 Series (DLRv6) Download File
- Instruction Manual: DLR45 Series_CCT Selectable Download File
Specifications
- Applications Commercial, Educational Setting, Offices, Residential, Retail
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 12
- Certifications cETLus, Wet Locations, Dimmable, ENERGY STAR®, Title 20, RoHS
- Color Accuracy ≥ 90 CRI
- Dimensions 2-3/4" H x 5-1/8" Dia
- Housing Stamped aluminum trim routes heat away from electrical components; polymer driver cover for durability
- Input Voltage 120V
- Lens Material Polystyrene diffuser lens creates uniform distribution without sacrificing lumen output
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output Up to 758 Lumens
- Mounting Details Quick and easy installation with an IDEAL quick connector (Edison style socket included); dual torsion springs ensure flush fit to ceiling
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum 0°F (-18°C)
- Power Consumption 7.9W
- Replaces 60W Incandescent
- Shipping Weight 0.40 (lbs.)
- Typical Mounting Height 0 to 10 Feet
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
NICOR® 4-inch LED Downlight | DLR Series | CCT Selectable | Up to 758 Lumens | 7.9W | White Your Price $19.99 $20.99
DLR4607120SWH
Replaces 60W Incandescent
Up to 758 Lumens
Up to 758 Lumens
7.9W
120V
5 Year
Yes
cETLus, Wet Locations, Dimmable, ENERGY STAR®, Title 20, RoHS
12
Stamped aluminum trim routes heat away from electrical components; polymer driver cover for durability
Quick and easy installation with an IDEAL quick connector (Edison style socket included); dual torsion springs ensure flush fit to ceiling
Polystyrene diffuser lens creates uniform distribution without sacrificing lumen output
Selectable, 2700K, 3000K, 3500K, 4000K, 5000K
CR4T-790L
Replaces 75W Incandescent
790 Lumens
790 Lumens
10.5W LED
120V
5 Year
Yes
cULus, Wet Locations (Downlights Only), Dimmable, Title 20, Title 24, RoHS
N/A
N/A
N/A
N/A
N/A
