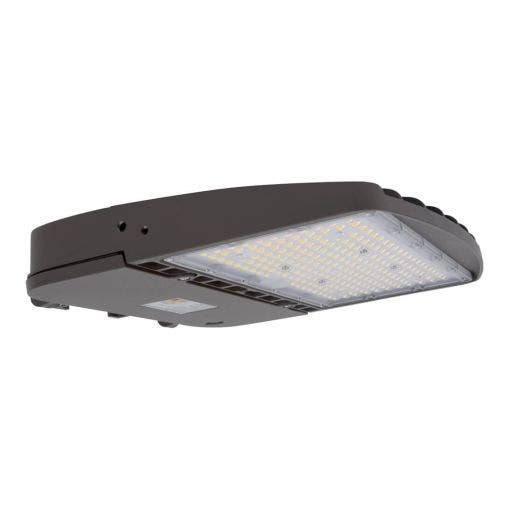

NaturaLED® LED Area Light | Type III | 480V Operation | FXCAL Series | 21,000 Lumens | 4000K | Bronze
Ships in: Next Business Day
$349.99
SKU: FXCAL150-840-BZ-3S-480
Replaces 400W PSMH
21,000 Lumens
21,000 Lumens
Product Overview
Replaces 400W PSMH (Pulse Start Metal Halide). 150W NaturaLED® Compact LED Area Light, 480V, 4000K with 21,000 Lumens, Type III optics, IP65 Rated, cULus Listed, 5-year warranty.
Additional Benefits:
- 6kV Surge protection
- Type IV and Type V lenses sold separately
Note: Please double check your drilling configuration on your light pole. If ordering this fixture with e-conolight light poles, drilling configuration should be 0 and the pole will need to be field drilled.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: FXCAL150-840-BZ-3S-480 with LENS-CAL-IV Download File
- Instruction Manual: FXCAL Series Download File
- Spec Sheet: FXCAL Series Download File
- Light Pole & Bullhorn EPA Data Download File
- Difference between area light distribution patterns (Type III, Type IV, Type V) explained Download File
Specifications
- Applications Auto Dealerships, General Area Lighting, Perimeter Lighting
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Wet Locations, Dimmable, DLC Premium, Title 24, RoHS, IP65
- Color Accuracy ≥ 80 CRI
- Dimensions 13-1/8" L x 14-3/8" W x 2-1/2" H
- Housing Bronze, die-cast aluminum
- Input Voltage 480V
- Lens Material UV-resistant polycarbonate lens
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output 21,000 Lumens
- Mounting Details Mounting sold separately; Pole mount, 2-inch adjustable slip fitter, yoke mount or wall mount
- Operating Temperature Maximum 113°F (45°C)
- Operating Temperature Minimum -40°F (40°C)
- Power Consumption 150W
- Replaces 400W PSMH
- Shipping Weight 6.48 (lbs.)
- Typical Mounting Height 15 to 25 feet
- warranty 5 Year
