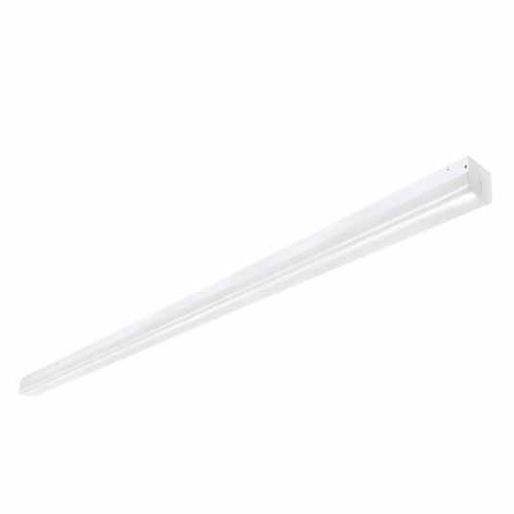

NaturaLED® 8-foot Linear LED Strip Light | CCT & Wattage Selectable | 120-277V | CSL Series | Up to 9398 Lumens | Selectable | White
Ships in: Next Business Day
$169.99
SKU: FXCSL68SW-96FR-8CCT3-MV
Replaces 2-lamp T5HO fixtures
Up to 9398 Lumens
Up to 9398 Lumens
Product Overview
Replaces 2-lamp T5HO fixtures. NaturaLED® 8-foot Linear LED Strip Light with field selectable CCT: 3500K/4000K/5000K and wattage: 44W/58W/68W, delivers up to 9398 lumens. UL Listed, 5-year limited warranty.
Additional Features:
- Very versatile and energy efficient
- Ideal for commercial applications but can be a great addition to any indoor work space, storage facility, warehouse, stairwell or hallway
- CCT & Wattage Selectable technology -- no need to purchase extra fixtures!
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: FXCSL68SW-96FR-8CCT3-MV Download File
- Instruction Manual: CSL Series Download File
- Spec Sheet: CSL Series Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Offices, Residential, Retail, Storage Facilities, Task & Workshop Lighting
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 8
- Certifications UL Listed, Damp Locations, Dimmable, DLC Premium, Title 24
- Color Accuracy ≥ 80 CRI
- Dimensions 92-7/8" L x 2-5/8" W x 2-3/4" H
- Housing White powder coated finish, stamped aluminum
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated frosted polycarbonate diffuser lens
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 9398 Lumens
- Mounting Details Keyhole slots for surface mount, v-hooks included for suspensions (chain provided by others)
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -13°F (-25°C)
- Power Consumption 44W/58W/68W
- Replaces 2 x F54T5HO
- Shipping Weight 9.90 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5 Year
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
FXCSL68SW-96FR-8CCT3-MV
Replaces 2-lamp T5HO fixtures
Up to 9398 Lumens
Up to 9398 Lumens
44W/58W/68W
Universal (120V - 277V)
5 Year
Yes
UL Listed, Damp Locations, Dimmable, DLC Premium, Title 24
8
White powder coated finish, stamped aluminum
Keyhole slots for surface mount, v-hooks included for suspensions (chain provided by others)
Integrated frosted polycarbonate diffuser lens
Selectable, 3500K, 4000K, 5000K
E-LSWS10A-8USCCTW
Replaces 2-lamp T5HO fixtures
Up to 10,000 Lumens
Up to 10,000 Lumens
55W/60W/70W
Universal (120V - 277V)
5 year
Yes
cULus, UL Listed, Damp Locations, Dimmable, RoHS
4
White powder coated steel housing
Keyhole slots for surface mounting to ceiling or wall
PMMA lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
C-STRIP-B-LIN8-S88L-SCCT-UL-WH
Replaces 2-lamp T5HO fixtures
Up to 8845 Lumens
Up to 8845 Lumens
32W/48W/64W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
1
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3mil thickness for superior corrosion resistance and maximum environmental durability.
Keyhole slots for surface mounting; or suspended mounting using hook and chain (sold separately)
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3000K, 4000K, 5000K
E-LSWS10A
Replaces 2-lamp T5HO fixtures
Up to 10,000 Lumens
Up to 10,000 Lumens
55W/60W/70W
Universal (120V - 277V)
5 year
Yes
cULus, UL Listed, Damp Locations, Dimmable, RoHS
1
White powder coated steel housing
Keyhole slots for surface mounting to ceiling or wall
PMMA lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
