LONGJOIN® Photocell
Your Price $14.39 $15.99
SKU: JL-423CZ
120-277V operation
1000W max
1000W max
Product Overview

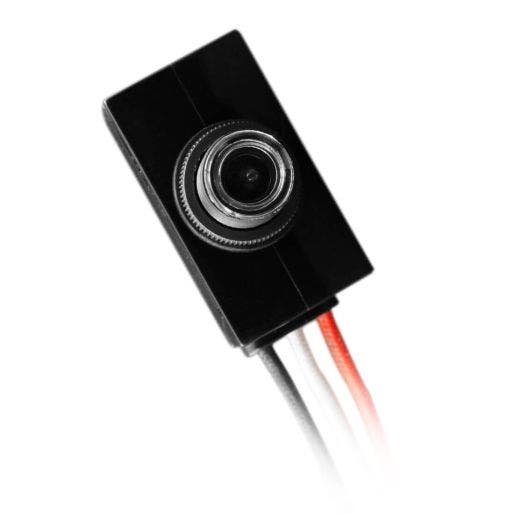

Standard button photocell, 120-277V. For use with products up to 1000W, IP65 rated.
Features
Housing:
- Polycarbonate
Mounting:
- Intended for use with 11/16” (17mm) hole
- 3/8"- 18 NPSM, 7/8" long stem with locking nut and washer gasket
Benefits:
- Automatically turns ON at dusk and OFF at dawn
- Universal Voltage 120-277V
- Rain tight construction for outdoor use
- Designed for LED Technology but will also work with other light sources
- Electrical life of 6500 cycles
- 3-year warranty
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: JL-423CZ Download File
- Instruction Manual: JL-423CZ Download File
- Instruction Manual: Photocell Download File
Specifications
- Case Quantity 200
- Certifications cULus, IP65
- Dimensions 2" L x 1-1/8" W x 1-3/4" H
- Housing Polycarbonate
- Input Voltage Universal (120V through 277V Operation)
- Mounting Details Intended for use with 11/16” (17mm) hole. 3/8"- 18 NPSM, 7/8" long stem with locking nut and washer gasket.
- Operating Temperature Maximum 158°F (70°C)
- Operating Temperature Minimum -22°F(-30°C)
- Power Consumption 0.4W
- Shipping Weight 0.10 (lbs.)
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
Certifications
Case Quantity
Housing
Mounting Details
Additional Documents
JL-423CZ
120-277V operation
1000W max
1000W max
0.4W
Universal (120V through 277V Operation)
cULus, IP65
200
Polycarbonate
Intended for use with 11/16” (17mm) hole. 3/8"- 18 NPSM, 7/8" long stem with locking nut and washer gasket.
CCR-PHC-0306-GC
120-277V operation
500W Max
500W Max
2W
Universal (120V through 277V Operation)
cULus, Wet Locations
250
Heavy-duty, rain-proof, polycarbonate housing and lens
5/8" threaded, neoprene gasket and plastic nut
