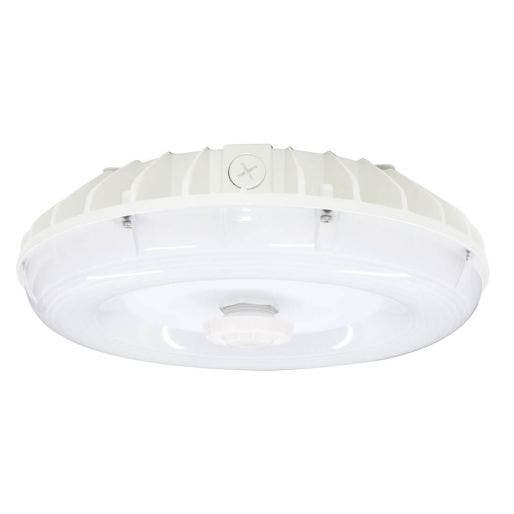

GKOLED® Round LED Canopy Light w/ Multi-Level Motion Sensor | GKOCP03 Series | 5700 Lumens | 45W | 5000K | White
Ships in: Next Business Day
$159.99
SKU: GKOCP0345W27V50KWMDPG
Replaces 150W PSMH
5700 Lumens
5700 Lumens
Product Overview
45W GKOLED® Round LED Canopy Light with multi-level motion sensor, 5700 delivered lumens, 5000K, cULus Listed, 5-year limited warranty.
Additional Benefits:
- Rugged die-cast aluminum housing with integral heat sink fins
- Impact and UV-resistant polycarbonate lens
- 0-10V dimmable
- Exterior protected by rust-resistant powder coat finish
- Center-mounted integrated multi-level motion sensor
- 0-10v Dimming NO dimming leads available for use in the field
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: GKOCP03 Series Download File
- Spec Sheet: GKOCP03 Series Download File
- IES File: GKOCP0345W27V50KWDPGM Download File
Specifications
- Applications Exterior Canopies
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 6
- Certifications cULus, Wet Locations, DLC Premium, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 12" L x 12" W x 3-3/8" H
- Housing Rugged die-cast aluminum white housing with integral heat sink fins. Housing has direct contact with the driver to help maintain low temperature and long lifespan and is completely sealed against moisture and environmental contaminants.
- Input Voltage Universal (120V - 277V)
- Lens Material Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing.
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 5700 Lumens
- Mounting Details Surface mount or pendant pount options available with a quick-mount bracket included; eliminating the need to open the fixture.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 45W
- Replaces 150W PSMH
- Shipping Weight 5.40 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5 year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
GKOCP0345W27V50KWMDPG
Replaces 150W PSMH
5700 Lumens
5700 Lumens
45W
Universal (120V - 277V)
5 year
No
cULus, Wet Locations, DLC Premium, RoHS
6
Rugged die-cast aluminum white housing with integral heat sink fins. Housing has direct contact with the driver to help maintain low temperature and long lifespan and is completely sealed against moisture and environmental contaminants.
Surface mount or pendant pount options available with a quick-mount bracket included; eliminating the need to open the fixture.
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing.
5000K
E-CSE06A-W50Z
Replaces 150W PSMH
6000 Lumens
6000 Lumens
46W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
E-CSE06A-W50W
Replaces 150W PSMH
6000 Lumens
6000 Lumens
46W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
E-CSE06A
Replaces 150W PSMH
6000 Lumens
6000 Lumens
46W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
