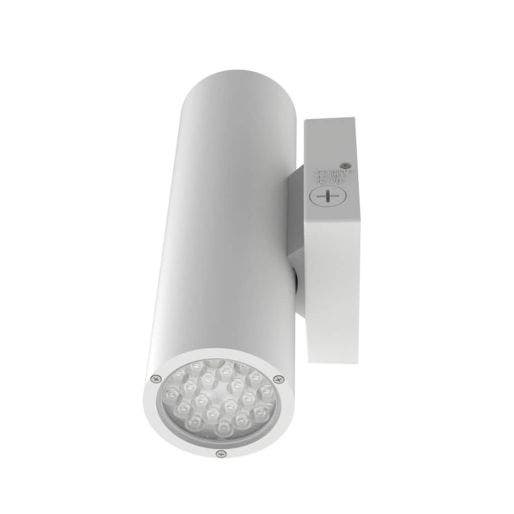

NaturaLED® LED Wall Sconce | CCT & Wattage Selectable | FX4DWS Series | Up or Down/Up & Down | Up to 2300 Lumens | 10W or 20W | Black or White
$104.99
SKU: FX4DWS20SW-20-8CCT3
Replaces 100W Incandescent
Up to 2300 Lumens
Up to 2300 Lumens
Product Overview
The NaturaLED® Cylinder LED Wall Sconce w/ CCT & Wattage Selectability comes with an included photocell (with on/off switch), delivers up to 2300 lumens, 4" diameter, shines light Up, Down, or Up and Down. Wattage Selectable options of: 10W or 20W, CCT Selectable options of: 3000K, 4000K or 5000K, black or white housing and 5-year limited warranty.
Additional Info:
- Included photocell: with on/off switch if it's not needed
- 0-10v dimming with dimming leads available for use in the field
- 3-way selection: Option 1: DOWN light only (10W with 1150 Lumens) | Option 2: UP Light only (10W with 1150 Lumens) | Option 3: Up and Down Light at the same time (20W with 2300 Lumens)
- 120V-347V Operation
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: NaturaLED® FX4DWS and FX6DWS Series Download File
- Spec Sheet: NaturaLED® FX4DWS and FX6DWS Series Download File
Specifications
- Applications Building Facades, Entryways, Outdoor Patios & Deck, Perimeter Lighting, Residential, Security, Storefront Lighting
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Certifications cETLus, Dimmable, ENERGY STAR®, RoHS, IP65
- Color Accuracy ≥ 80 CRI
- Dimensions 12" L x 5" W x 3-3/8" D
- Housing Black or White, Die-Cast Aluminum Housing
- Input Voltage 120V - 347V
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 2300 Lumens
- Mounting Details Mounts to standard J-Box
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 10W or 20W
- Replaces 100W Incandescent
- Shipping Weight 2.87 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5 year
