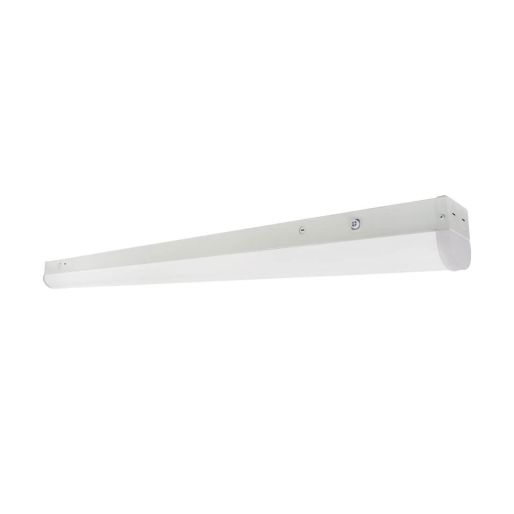

savr® Linear LED Strip Light | E-LSN05C Series | 4-foot | 4000K or 5000K | 5200 Lumens | 120-277V | White
$59.99
SKU: E-LSN05C
Replaces 1-Lamp T5HO fixtures
5200 Lumens
5200 Lumens
Product Overview
The savr® 40W 4-foot LED Linear Strip Light comes with 5200 delivered lumens, 4000K or 5000K, cULus Listed and has a 5-year limited warranty.
Additional Benefits:
- Unique press-to-release buttons allow for quick, tool-less access to wiring compartment and easy installation. Internal support cables for lens assembly provided for simple, single-person installation.
- 130° beam angle
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: E-LSN05C Series Download File
- Spec sheet: E-LSN05C Series Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Residential, Retail, Task & Workshop Lighting
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 8
- Certifications cULus, Damp Locations, Dimmable, DLC Standard, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 48" L x 2-15/16" W x 3-1/4" H
- Housing White powder coated steel housing
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated frosted polycarbonate diffuser lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output 5200 Lumens
- Mounting Details Keyhole slots designed for surface mounting to a ceiling or wall.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 40W
- Replaces 1 x F54T5HO
- Shipping Weight 3.20 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
E-LSN05C
Replaces 1-Lamp T5HO fixtures
5200 Lumens
5200 Lumens
40W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
8
White powder coated steel housing
Keyhole slots designed for surface mounting to a ceiling or wall.
Integrated frosted polycarbonate diffuser lens
5000K
C-STRIP-B-LIN4-S56L-SCCT-UL-WH
Replaces 1 x F54T5HO
Up to 5650 Lumens
Up to 5650 Lumens
22W/33W/45W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
6
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3-mil thickness for superior corrosion resistance and maximum environmental durability.
Keyhole slots for surface mounting; or suspended mounting using hook and chain (sold separately)
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3000K, 4000K, 5000K
C-STRIP-B-LIN8-S88L-SCCT-UL-WH
Replaces 2-lamp T5HO fixtures
Up to 8845 Lumens
Up to 8845 Lumens
32W/48W/64W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
1
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3mil thickness for superior corrosion resistance and maximum environmental durability.
Keyhole slots for surface mounting; or suspended mounting using hook and chain (sold separately)
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3000K, 4000K, 5000K
E-LSWS05A-4USCCTW
Replaces 1-lamp T5HO fixtures
Up to 5000 Lumens
Up to 5000 Lumens
25W/30W/35W
Universal (120V - 277V)
5 year
Yes
cULus, UL Listed, Damp Locations, Dimmable, RoHS
6
White powder coated steel housing
Keyhole slots for surface mounting to ceiling or wall
PMMA lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
