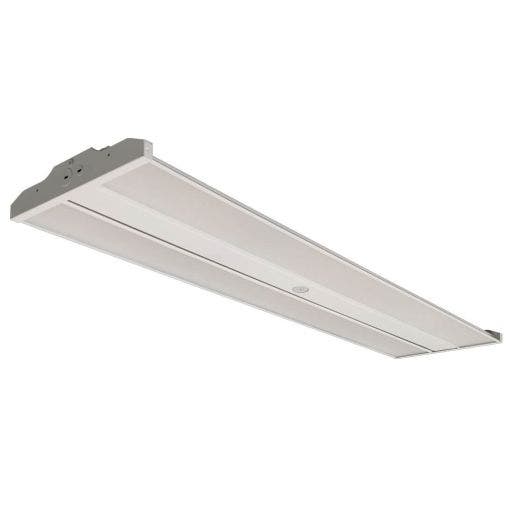

savr® Linear LED High Bay | E-HBL Series | CCT & Wattage Selectable | Up to 60,000 Lumens | 120-277V | White | With or Without Emergency Backup
$289.99 - $439.99
SKU: E-HBLS60A-U
Replaces 8-Lamp - T5HO 54W
Up to 60,000 Lumens
Up to 60,000 Lumens
Product Overview
The savr® E-HBL Series LED linear high bay is field CCT and wattage selectable and available with a variety of accessories, providing excellent versatility to meet your application needs. Delivers up to 60,000 lumens with selectable 4000K or 5000K CCT options. These are cULus listed for damp locations and are backed with a 5-year limited warranty.
Additional Benefits
- Up to 160 LPW (Lumens Per Watt)
- 3 wattage and 2 CCT field selectable options
- Ultra-slim, 10-1/4" wide design
- Variety of sensor and mounting options
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: E-HBL Series Download File
- Spec sheet: E-HBL Series Download File
Specifications
- Applications Gymnasium, Industrial, Manufacturing, Retail, Warehouses
- Factory Installed Emergency Backup No
- Emergency Backup No
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications UL Listed, Damp Locations, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 44" L x 10-1/4" W x 1-7/8" H
- Housing White powder coated, stamped steel housing
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated frosted polycarbonate diffuser lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 60,000 Lumens
- Mounting Details Included V-hooks and chains, surface and pendant mounting options available
- Operating Temperature Range -40°F - 104°F (-40°C - 40°C)
- Power Consumption 412W
- Replaces 8 x F54T5HO
- Shipping Weight 12.00 (lbs.)
- Typical Mounting Height 15 to 25 feet
- warranty 5 Year
