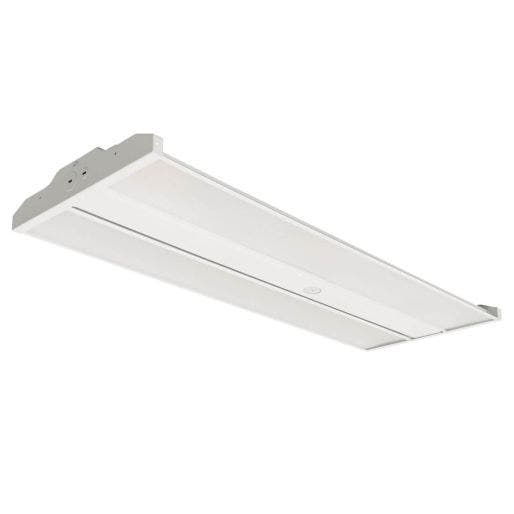

savr® Linear LED High Bay | E-HBL Series | CCT & Wattage Selectable | Up to 36,000 Lumens | 120-277V | White | With or Without Emergency Backup
$199.99 - $349.99
SKU: E-HBLS36A-U
Replaces 8-Lamp - T5HO 54W
Up to 36,000 Lumens
Up to 36,000 Lumens
Product Overview
The savr® E-HBL Series LED linear high bay is field CCT and wattage selectable and available with a variety of accessories, providing excellent versatility to meet your application needs. Delivers up to 36,000 lumens with selectable 4000K or 5000K CCT options. These are cULus listed for damp locations and are backed with a 5-year limited warranty.
Additional Benefits
- Up to 160 LPW (Lumens Per Watt)
- 3 wattage and 2 CCT field selectable options
- Ultra-slim, 10-1/4" wide design
- Variety of sensor and mounting options
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: E-HBL Series Download File
- Spec sheet: E-HBL Series Download File
Specifications
- Applications Gymnasium, Industrial, Manufacturing, Retail, Warehouses
- Factory Installed Emergency Backup No
- Emergency Backup No
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications UL Listed, Damp Locations, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 31" L x 10-1/4" W x 1-7/8" H
- Housing White powder coated, stamped steel housing
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated frosted polycarbonate diffuser lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 36,000 Lumens
- Mounting Details Included V-hooks and chains, surface and pendant mounting options available
- Operating Temperature Range -40°F - 104°F (-40°C - 40°C)
- Power Consumption 242W
- Replaces 8 x F54T5HO
- Shipping Weight 9.50 (lbs.)
- Typical Mounting Height 15 to 25 feet
- warranty 5 Year
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
E-HBLS36A-U
Replaces 8-Lamp - T5HO 54W
Up to 36,000 Lumens
Up to 36,000 Lumens
242W
Universal (120V - 277V)
5 Year
Yes
UL Listed, Damp Locations, RoHS
White powder coated, stamped steel housing
Included V-hooks and chains, surface and pendant mounting options available
Integrated frosted polycarbonate diffuser lens
Selectable, 4000K, 5000K
GKOLED® LED Linear High Bay | GKOMLHG Series | 18,500 Lumens | 4000K-5000K | White | 2-PackOOS
Your Price $269.99 $301.99 $135.00 EACH, PACK OF 2
GKOMLHG4130W
Replaces 4 x F54T5HO
18,500 Lumens
18,500 Lumens
130W
Universal (120V through 277V Operation)
5 Year
Yes
UL Listed, Damp Locations, DLC Premium
Rugged cold-rolled steel housing White, rust-resistant powder coat finish
Chain mount with steel wire rope included
Polycarbonate
N/A
C-HB-A-LB2-S24L-SCCT-UL-WH
Replaces 6-Lamp - T5HO 54W
Up to 26,200 Lumens
Up to 26,200 Lumens
180 W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
Housing frame is stamped aluminum with a high reflectance, white powder-coat finish. Light bar housings and wiring compartment made from extruded aluminum.
V-Hooks (2) included, chains sold separately. Pendant/conduit mount supplied by others.
Polycarbonate
Selectable, 4000K, 4500K, 5000K
C-PHB-C-L2F-S24L-SCCT-UL-WH
Replaces 6-Lamp - T5HO 54W
Up to 26,100 Lumens
Up to 26,100 Lumens
125W/175W
Universal (120V - 277V)
5-year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
Steel construction, white polyester powder-coat finish
V-Hooks (2) included, chains sold separately. Pendant/conduit mount supplied by others.
Integrated frosted polycarbonate diffuser lens
Selectable, 4000K, 4500K, 5000K
GKOLED® LED Linear High Bay | GKOMLHG Series | 12,600 Lumens | 4000K-5000K | White | 2-PackOOS
Your Price $219.99 $252.99 $110.00 EACH, PACK OF 2
GKOMLHG490W
Replaces 6 x F32T8
12,600 Lumens
12,600 Lumens
90W
Universal (120V through 277V Operation)
5 Year
Yes
UL Listed, Damp Locations, DLC Premium
Rugged cold-rolled steel housing White, rust-resistant powder coat finish
Chain mount with steel wire rope included
Polycarbonate
N/A
