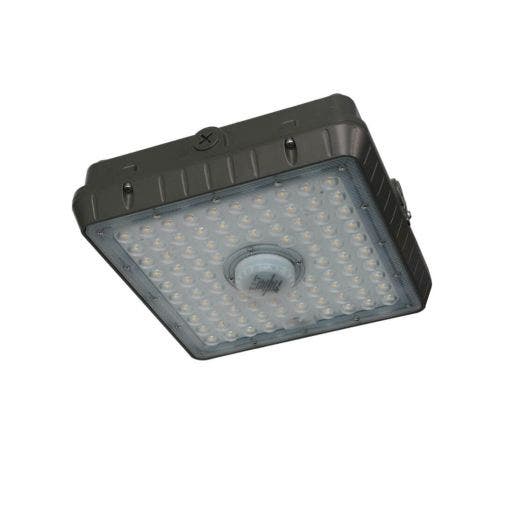

savr® LED Canopy Light | CCT & Wattage Selectable | E-CSF Series | Up to 10,506 Lumens | Up to 73W | Bronze or White
$99.99
SKU: E-CSF10A-WSCCT
Replaces 250W MH
Up to 10,506 Lumens
Up to 10,506 Lumens
Product Overview
Up to 73W savr® LED Canopy Light with field selectable wattage and CCT. Bronze housing, delivers up to 10,506 lumens, CCT options of: 3000K, 4000K or 5000K, wattage selectable options of: 73W/57W/48W. 5-year limited warranty.
Additional Benefits:
- Field Selectable CCT: 3000K, 4000K or 5000K
- IP65 Rated to prevent dust and pressured water
- 0-10V dimming comes standard
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: E-CSF Series Download File
- Spec Sheet: E-CSF Series Download File
Specifications
- Applications Exterior Canopies, Parking Garage Structures, Storage Facilities
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 6
- Certifications cULus, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
- Color Accuracy ≥ 80 CRI
- Dimensions 10-1/2" L x 9-5/8" W x 3-3/8" H
- Housing Die cast aluminum housing with dark bronze powder coat finish
- Input Voltage Universal (120V - 277V)
- Lens Material Polycarbonate Lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 10,506 Lumens
- Mounting Details Mounting options include surface mounting and pendant mounting using 3/4" electrical conduit.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Up to 73W
- Replaces 250W MH
- Shipping Weight 5.00 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5 year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
E-CSF10A-WSCCT
Replaces 250W MH
Up to 10,506 Lumens
Up to 10,506 Lumens
Up to 73W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
6
Die cast aluminum housing with dark bronze powder coat finish
Mounting options include surface mounting and pendant mounting using 3/4" electrical conduit.
Polycarbonate Lens
Selectable, 3000K, 4000K, 5000K
C-CP-D-SQ-S9L-SCCT-DB
Replaces 250W MH
Up to 9700 Lumens
Up to 9700 Lumens
Up to 67W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, DLC Premium, RoHS, IP65
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV-stabilized acrylic lens
Selectable, 3000K, 4000K, 5000K
E-CSE08A-W40Z
Replaces 250W PSMH
8500 Lumens
8500 Lumens
66W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
4000K
E-CSE08A-W40W
Replaces 250W PSMH
8500 Lumens
8500 Lumens
66W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
White, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
4000K
E-CSE08A-W50W
Replaces 250W PSMH
8500 Lumens
8500 Lumens
66W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
E-CSE08A-W50Z
Replaces 250W PSMH
8500 Lumens
8500 Lumens
66W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
E-CSE11A-W50Z
Replaces 320W PSMH
11,100 Lumens
11,100 Lumens
80W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
E-CSE11A-W50W
Replaces 320W PSMH
11,100 Lumens
11,100 Lumens
80W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
E-CSE08A
Replaces 250W PSMH
8500 Lumens
8500 Lumens
66W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
E-CSE11A
Replaces 320W PSMH
11,100 Lumens
11,100 Lumens
80W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
