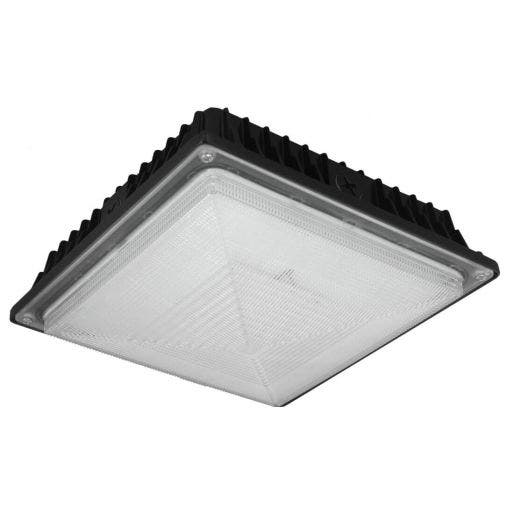

savr® Square LED Canopy Light | E-CSE Series | 6000 Lumens | 46W | 5000K | Dark Bronze or White
$54.99
SKU: E-CSE06A
Replaces 150W PSMH
6000 Lumens
6000 Lumens
Product Overview
46W savr® Square LED Canopy Light, 6000 delivered lumens, 5000K, dark bronze or white housing, 120-277V, 3-year limited warranty.
Additional Benefits:
- Mounts to surface, pendant or j-box
- Polyester powder-coat finish provides corrosion protection for long lasting color
- UV Stabilized acrylic lens designed to last a long time
- 0-10V Dimmable
Guides & Info
- You must configure your product to download IES file.
- Spec sheet: E-CSE Series Download File
- Instruction Manual: E-CSE Series Download File
Specifications
- Applications Entryways, Exterior Canopies, Perimeter Lighting, Security
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications cULus, Wet Locations, Dimmable, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 10" L x 10" W x 4" H
- Housing Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
- Input Voltage Universal (120V - 277V)
- Lens Material UV Stabilized acyrlic lens, designed to last a long time
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 6000 Lumens
- Mounting Details Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 46W
- Replaces 150W PSMH
- Shipping Weight 3.72 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 3 year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
E-CSE06A
Replaces 150W PSMH
6000 Lumens
6000 Lumens
46W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
GKOCP0345W27V50KWMDPG
Replaces 150W PSMH
5700 Lumens
5700 Lumens
45W
Universal (120V - 277V)
5 year
No
cULus, Wet Locations, DLC Premium, RoHS
6
Rugged die-cast aluminum white housing with integral heat sink fins. Housing has direct contact with the driver to help maintain low temperature and long lifespan and is completely sealed against moisture and environmental contaminants.
Surface mount or pendant pount options available with a quick-mount bracket included; eliminating the need to open the fixture.
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing.
5000K
