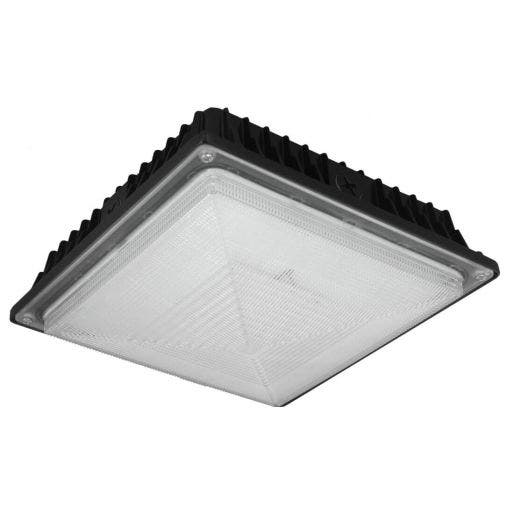

savr® Square LED Canopy Light | E-CSE Series | 3300 Lumens | 25W | 5000K | Dark Bronze or White

Write a Review
Questions & Answers
Lighting Layout Tool

OOS

$44.99

Knock this price down to $40.49. Join e-cono+ for free today Sign up >.

SKU: E-CSE03A

Replaces 100W PSMH
3300 Lumens

Lead times can vary, configure product below to confirm availability.

Add to Favorites/Create a Quote

Product Overview

25W savr® Square LED Canopy Light, 3300 delivered lumens, 5000K, dark bronze or white housing, 120-277V, 3-year limited warranty.

Additional Benefits:

Mounts to surface, pendant or j-box
Polyester powder-coat finish provides corrosion protection for long lasting color
UV Stabilized acrylic lens designed to last a long time
0-10V Dimmable

Guides & Info

You must configure your product to download IES file.

Spec sheet: E-CSE Series Download File
Instruction Manual: E-CSE Series Download File

Specifications

Applications Entryways, Exterior Canopies, Perimeter Lighting, Security
FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
Case Quantity 6
Certifications cULus, Wet Locations, Dimmable, RoHS
Color Accuracy ≥ 70 CRI
Dimensions 10" L x 10" W x 4" H
Housing Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Input Voltage Universal (120V - 277V)
Lens Material UV Stabilized acyrlic lens, designed to last a long time
Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output 3300 Lumens
Mounting Details Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
Operating Temperature Maximum 104°F (40°C)
Operating Temperature Minimum -40°F (-40°C)
Power Consumption 25W
Replaces 100W PSMH
Shipping Weight 3.41 (lbs.)
Typical Mounting Height 10 to 15 feet
warranty 3 year

How much light do you need? Create a custom plan with our simple free tools.

INDOOR LIGHTING LAYOUT TOOL > OUTDOOR LIGHTING LAYOUT TOOL >

Product Comparison

Product

SKU

Short Description

Power Consumption

Input Voltage

warranty

Dimmable

Certifications

Case Quantity

Housing

Mounting Details

Lens Material

Color Temperature (CCT)

Additional Documents

OOS

$44.99

E-CSE03A

Replaces 100W PSMH
3300 Lumens

25W

Universal (120V - 277V)

3 year

Yes

cULus, Wet Locations, Dimmable, RoHS

Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.

Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.

UV Stabilized acyrlic lens, designed to last a long time

5000K
