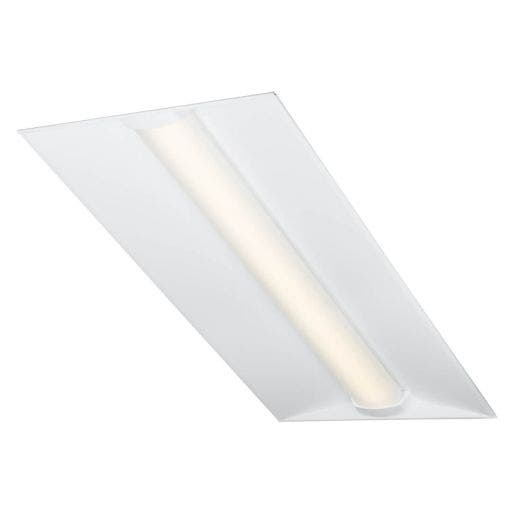

Cree Lighting® ZR24™ 3-Part LED Retrofit Kit | 2' x 4' | ZR™ Series | 6325 Lumens | 4000K | White
$94.77
SKU: ZRRK24-60L-840-10V5-UNV
Replaces 4 x F32T8
6325 Lumens
This product is a kit to retrofit a fluorescent fixture to an LED fixture.
6325 Lumens
This product is a kit to retrofit a fluorescent fixture to an LED fixture.
Product Overview
Replaces 4 x F32T8. 45W Cree Lighting ZR Series 2x4, 3-Part LED Retrofit Kit for troffers, with 6325 delivered lumens, 4000K, cULus Listed, 5-year limited warranty. This product is a kit to retrofit a fluorescent fixture to an LED fixture.
Additional Benefits:
- Ultra-thin fixture height (3.0" [77mm] on 2x2 and 2x4 and 3.4" [86mm] on 1x4) and lightweight design effectively target a broad range of plenum spaces and allow for easy installations
- 3-part door kit design that snaps and locks into place for quick and easy upgrading
Note:
Not all product configurations listed on the product specification sheet may be available for purchase on e-conolight.com. See a SKU that's not on our website that you'd like to purchase? Please call 888-243-9445 to place your order.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: ZRRK24-60L-8 Download File
- Instruction Manual: ZR-RK Series (Includes: ZRRK14, ZRRK22, ZRRK24 Series) Download File
- Spec Sheet: ZRRK Series Download File
Specifications
- Applications Auto Dealerships, Commercial, Educational Setting, Offices, Retail, Shopping Centers
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, DLC Premium, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 48" L x 23-9/10" W x 3" H
- Housing Cold Rolled Steel
- Input Voltage Universal (120V - 277V)
- Lens Material Acrylic lens.
- Lifespan Estimated L70 Lifetime at 25⁰ C (77⁰ F) is > 100,000 hours
- Light Output 6325 Lumens
- Mounting Details Fits into existing 2x4 fluorescent prismatic and parabolic troffer pans using standard NEMA® 9/16" or 15/16" T-Bar ceiling grid.
- Operating Temperature Maximum 95⁰ F (35⁰ C)
- Operating Temperature Minimum 32⁰ F (0⁰ C)
- Power Consumption 45W
- Replaces 4 x F32T8
- Shipping Weight 14.55 (lbs.)
- Typical Mounting Height 8-15 feet
- warranty 5-year
