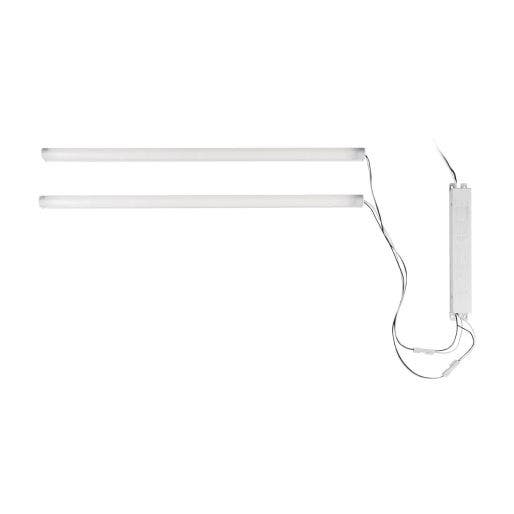

Cree Lighting® UR2-24™ 2-Light Bar LED Retrofit Kit | UR Series | 3200 Lumens | 4000K | White
Your Price $17.97 $21.97
SKU: UR2-24-32L-840-10V5-UNV-BP
Replaces 2 x F17T8 or 1 x F32T8/U6
2600 Lumens (System delivered)
2600 Lumens (System delivered)
Product Overview
Replaces 2 x F17T8 or 1 x F32T8/U6. 21W Cree Lighting 2', 2-Light Bar Upgrade/Retrofit Kit to upgrade existing 1x2 or 2x2 linear fluorescent luminaires, 2600 lumens (System delivered), 3500K, cULus, 1-year limited warranty.
Additional Benefits:
- Enhanced spectrum 80 CRI light
- Easy to install and fits into almost any existing linear fluorescent fixture making it a perfect upgrade option where energy savings and long life are critical
Note:
Not all product configurations listed on the product specification sheet may be available for purchase on e-conolight.com. See a SKU that's not on our website that you'd like to purchase? Please call 888-243-9445 to place your order.
Guides & Info
- IES File: UR2-24-32L-8xx-10V5-UNV Download File
- Instruction Manual: UR Series Download File
- Spec Sheet: UR Series Upgrade Kit Download File
Specifications
- Applications Auto Dealerships, Commercial, Educational Setting, Offices, Retail, Shopping Centers
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Dimmable
- Color Accuracy ≥ 80 CRI
- Dimensions 22" MOL Light Bars
- Housing Lightweight aluminum heat sink housing provides strength and durability.
- Input Voltage Universal (120V - 277V)
- Lens Material Specialized lens design for optimal light distribution and smooth visual effect. Polycarbonate lens and end caps
- Light Output 3200 (System Delivered) Lumens
- Mounting Details Includes durable plastic mounting clips with integrated magnets allow for simple snap on design to existing linear fluorescent luminaires
- Operating Temperature Maximum +45°C (+113°F)
- Operating Temperature Minimum -20°C (-4°F)
- Power Consumption 25W
- Replaces 2 x F17T8, 1 x F32T8
- Shipping Weight 1.65 (lbs.)
- Typical Mounting Height 8-15 feet
- warranty 1 Year
