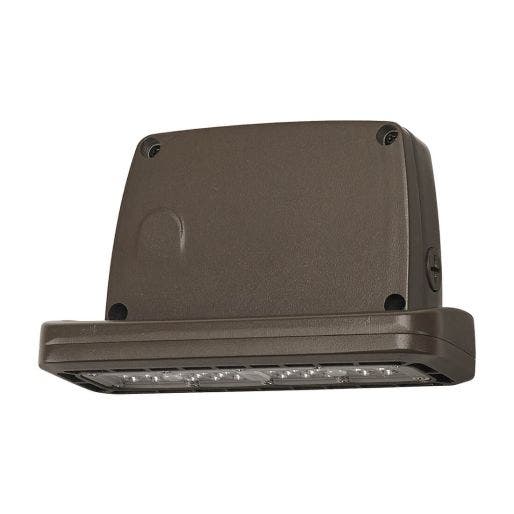

Cree Lighting® Noctura® Series LED Wall Pack | 1580 Lumens | 4000K | 120-277V Operation | Medium Bronze
$97.99
SKU: NTW-A-WM-T3-1L-40K-UL-BZ
Replaces 50W MH
1580 Lumens
1580 Lumens
Product Overview
Replaces 50W Metal Halide. 12-watt C-Lite LED Wall Pack with delivered 1580 lumens. 4000K, white, cULus 5-year limited warranty. Designed for downlight applications only.
Features
Housing:
- Low Copper Content
- Corrosion resistant
- 360 Cast Aluminum Alloy Housing
- Polyester Powercoat finished
Lens Assembly:
- Impact resistant acrylic
Mounting:
- Luminaire mounts to a variety of junction box styles: 4" square, 3" and 4" octagonal, single gang, vertical or horizontal mounts. Direct mount to junction box with knockouts and grommet on back
cULus Listed:
- Wet Location
- RoHS
- IP65
- 0-10V
Certifications:
Dimmable:
Recommended Use
- Perimeter
- Security
- Education
- Yard/Dock
Note:
- Not all product configurations listed on the product specification sheet may be available on e-conolight. See a SKU that's not on our website that you'd like to purchase? Please call 888-243-9445 to place your order.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: NTW-A-WM-T3-1L-40K-UL-BZ Download File
- Product Selection Guide: Noctura Series Download File
- Instruction Manual: Noctura Small Wall Mount Series Download File
- Noctura Wall Mount Series Sale Sheet Download File
- Spec Sheet: Noctura Series Wall Mount Download File
Specifications
- Applications Perimeter Lighting, Security, Storefront Lighting, Yard & Dock Illumination
- Certifications cULus, Wet Locations, Dimmable, RoHS, IP65
- Color Accuracy ≥ 70 CRI
- Dimensions 11" L X 6 1/8" W X 7 3/8" H
- Input Voltage Universal (120V through 277V Operation)
- Lifespan Estimated > 150,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 1580 Lumens
- Mounting Details Mounting sold separately - see accessories below on available options
- Operating Temperature Maximum 122°F (40° C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 12W LED
- Replaces 50W MH
- Shipping Weight 3.85 (lbs.)
- Typical Mounting Height 12-20 Feet
- warranty 5 Year
