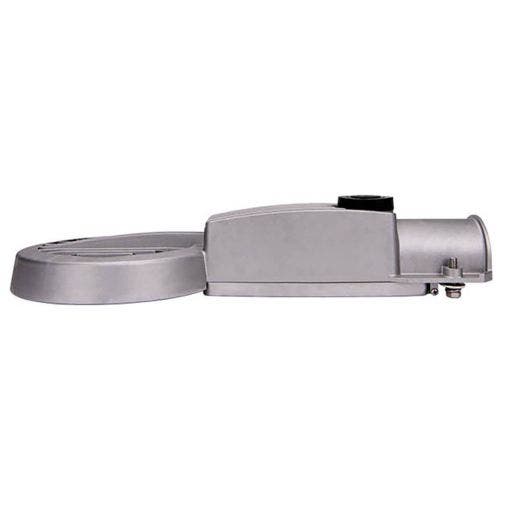

Cree Lighting® LED Dusk to Dawn Light w/ 10kV Surge Suppression Protection | Type II | RUL-B Series | 5250 Lumens | 4000K | Aluminum
$64.97
SKU: RULS-B-5L-40K7-2N-UL
Replaces 100W MH/100W HPS
5250 Lumens
5250 Lumens
Product Overview
Replaces 100-watt metal halide (MH). 42-watt LED Dusk to Dawn Light with 10kV surge suppression protection, 3-pin photocell receptacle, 5250 delivered lumens, Type II distribution pattern. 4000K, cULus Listed, 10-year limited warranty.
Additional Features:
- Tool less entry
- 10kV surge suppression protection
- SKU includes: Utility label, photocell receptacle
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: RUL-B Series Download File
- Instruction Manual: RUL-B Series Download File
- IES File: RULS-B-5L-40K7-2N-UL Download File
Specifications
- Applications General Area Lighting, Security, Yard & Dock Illumination
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Wet Locations, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 18-1/8" L x 8-3/16" W x 3-3/8" H
- Housing Die cast aluminum
- Input Voltage Universal (120V - 277V)
- Lens Material Optical grade acrylic
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output 5250 Lumens
- Mounting Details Mounts on 1.25” IP, 1.66” O.D. or 2” IP, 2.375” O.D. horizontal tenon (minimum 3” in length). Is adjustable +/- 5˚ in 2.5˚ increments to allow for fixture leveling
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 42W
- Replaces 100W MH, 100W PSMH
- Shipping Weight 4.00 (lbs.)
- Typical Mounting Height 15-30 feet
- warranty 10 Year
