Cree Lighting® 4-inch LED Downlight | CDR4 Series | CCT & Wattage Selectable | Up to 1000 Lumens | White
$32.99
SKU: CDR4-B-ALS-9ACK-10V5-WH-UNV
Replaces 13W compact fluorescent (CFL)
Up to 1000 Lumens
Up to 1000 Lumens
Product Overview

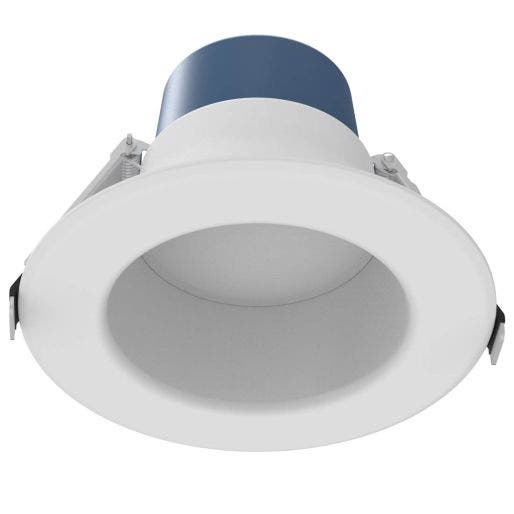

Replaces 13W compact fluorescent (CFL). LED 4-inch Downlight with a selectable wattage of: 5.5W, 8W or 12W with up to 1000 delivered lumens. Color temperature (CCT) selectable: 3000K/3500K/4000K, cETLus Listed, 5-year limited warranty.
Additional Benefits:
- IC Rated
- Contains 2 switches to allow you to select your wattage and color temperature (CCT)
- Designed for canless applications
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: CDR4-B-ALS-9ACK-10V5-WH-UNV Download File
- Instruction Manual: CDR-B Series Download File
- Spec sheet: CDR_B Series Download File
- IES Files: CDR4-B-ALS-9ACK-10V5-WH-UNV Download File
Specifications
- Applications Offices, Residential, Retail, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 8
- Certifications cETLus, Wet Locations, Dimmable, Title 24, RoHS
- Color Accuracy ≥ 90 CRI
- Dimensions 4-3/8" H x 5-7/8" Dia
- Housing Aluminum trim, baffle and housing, white finish. Polycarbonate plastic driver compartment
- Input Voltage Universal (120V - 277V)
- Lens Material Diffused polycarbonate
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 1000 Lumens
- Mounting Details Two spring-action mounting clips secure fixture snug to mounting surface
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 5.5W/8W/12W
- Replaces 13W CFL
- Shipping Weight 1.50 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5 Year
