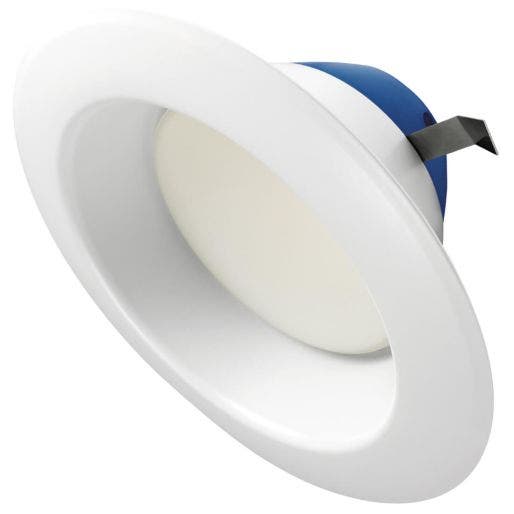

Cree Lighting® PRO Series 6-inch LED Downlight | CR6T Series | 11W | Dimmable

Write a Review
Questions & Answers
Lighting Layout Tool

$12.50

Knock this price down to $11.25. Join e-cono+ for free today Sign up >.

SKU: CR6T-825L

Replaces 75W Incandescent
825 Lumens

Lead times can vary, configure product below to confirm availability.

Product Overview

Replaces 75-watt incandescent. 11-watt LED 6-inch Downlight - with 825 delivered lumens. 2700K, 3000K, 3500K & 4000K white housing, cULus Listed, ENERGY STAR^® Certified, Dimmable, 5-year limited warranty.

Features

Housing:

Durable upper housing protects LEDs, driver and power supply
One-piece aluminum lower reflector redirects light while also conducting heat away from LEDs
Adjustable flip clips resist heat while providing retention for flush ceiling fit

Lens Assembly:

Diffusing polycarbonate

Mounting:

Quick install system utilizes a unique retention feature
Designed to install in standard 5-6-inch downlight housings with minimum housing height of 5-1/2-inches

Included:

E26 and GU24 Base pigtails

Dimmable:

Dimmable to 5% with select incandescent dimmers (forward phase/triac and reverse phase only) at 120V only.

Optical System:

Unique combination of reflective and refractive optical components achieves a uniform, comfortable appearance while eliminating pixelation and color fringing
Diffusing polycarbonate lens shields direct view of LEDs while lower reflector balances brightness of lens with the ceiling to create a low glare, high angle appearance

cULus Listed:

Wet locations (For covered ceilings only)

Recommended Use

Commercial
Residential
Hospitality
Gas Stations

Guides & Info

You must configure your product to download IES file.

Spec Sheet: Cree Lighting® PRO Series CR6T Download File
Instruction Manual: Cree Lighting® PRO Series CR6T Download File
Recommended Dimmers: Cree Lighting® PRO Series Downlights CR6T 825L Download File

Specifications

Applications General Area Lighting, Residential
Certifications cULus, Wet Locations (Downlights Only), Dimmable, Title 20, Title 24, RoHS
Color Accuracy ≥ 90 CRI
Dimensions 7-1/2" L x 7-1/2" W x 4-2/7" H
Input Voltage 120V
Lifespan Estimated 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output 825 Lumens
Operating Temperature Maximum -25°C to 35°C (-13°F to 95°F)
Operating Temperature Minimum -25°C to 35°C (-13°F to 95°F)
Power Consumption 11W LED
Replaces 75W Incandescent
Shipping Weight 0.90 (lbs.)
warranty 5 Year
