C-Lite LED Wrap Light | Optional Sensors and Emergency Backup | CCT & Wattage Selectable | C-WR-C-SCCT Series | Up to 5800 Lumens | 120-277V
$69.99 - $219.99
SKU: C-WRT4-A-S58L-SCCT
Replaces 2-Lamp 32WT8
Up to 5800 Lumens
Up to 5800 Lumens
Product Overview

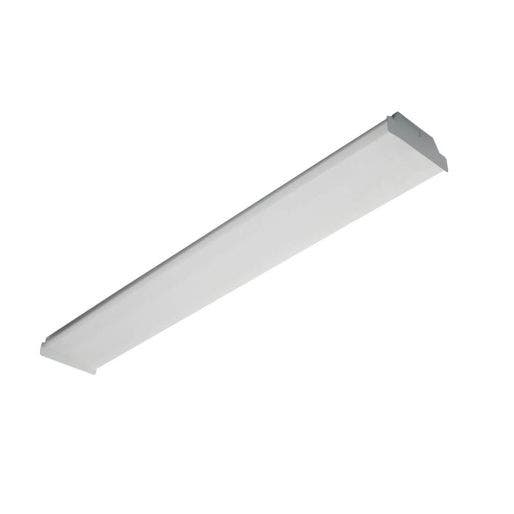

C-Lite LED Wrap Light with optional PIR or microwave sensor, and optional emergency backup, field selectable wattage: 30W/35W/41W and CCT: 3500K/4000K/5000K. Delivers up to 5800 lumens. 10W Emergency battery backup delivers 1320 lumens, cULus Listed, 5-year limited warranty.
Additional Benefits:
- Clean, simple design
- Wattage and CCT selectable to meet a broad range of needs
- Durable powdercoated steel housing
- Frosted PMMA lens
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: C-WRT4-A Series Download File
- Spec sheet: C-WRT4-A Series Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Retail, Storage Facilities, Task & Workshop Lighting, Warehouses
- Factory Installed Battery Backup Yes (With Battery Backup)
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 4
- Certifications UL Listed, Damp Locations, Dimmable, DLC Standard, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 47 3/4" L x 7 1/8" W x 2 3/4" H
- Housing Durable, commercial quality, cold-rolled steel with a white powder coat finish
- Input Voltage Universal (120V - 277V)
- Lens Material Frosted PMMA diffuser lens for superior light uniformity and glare reduction
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 5800 Lumens
- Mounting Details Surface mount
- Operating Temperature Maximum 140°F (60°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 30W/35W/41W
- Replaces 2 x F32T8
- Shipping Weight 11.50 (lbs.)
- Product Weight 10.2 lbs
- Typical Mounting Height 10 to 15 feet
- warranty 5 year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-WRT4-A-S58L-SCCT
Replaces 2-Lamp 32WT8
Up to 5800 Lumens
Up to 5800 Lumens
30W/35W/41W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, DLC Standard, RoHS
4
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Surface mount
Frosted PMMA diffuser lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
C-WR-A-WW4-S68L-SCCT-WH-EB
Replaces 3-Lamp 32WT8
Up to 6800 Lumens
Up to 6800 Lumens
26W/40W/55W
Universal (120V - 277V)
5 Year
Yes
cULus, Dry Locations, DLC Standard, RoHS
N/A
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3mil. thickness for superior corrosion resistance and maximum environmental durability
Keyhole slots for surface mounting, various knockouts provided for wiring entry
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3000K, 4000K, 5000K
E-LWNS05B-4USCCTW
Replaces 2-Lamp 32WT8
Up to 5800 Lumens
Up to 5800 Lumens
30W/39W/47W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, RoHS
4
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Surface mount
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
