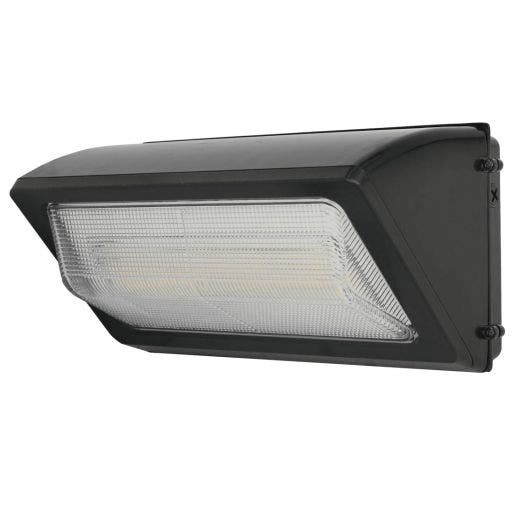

C-Lite Traditional Style LED Wall Pack w/ Glass Lens | CCT & Wattage Selectable | C-WP-E-TR-SCCT Series | Up to 23,500 Lumens | Dark Bronze
Back-Order: Available by 01/03/2025
$184.99
SKU: C-WP-E-TR-S23L-SCCT-UL-DB
Replaces 400W PSMH
Up to 23,500 Lumens
Emergency battery backup option available
Up to 23,500 Lumens
Emergency battery backup option available
Product Overview
Replaces 400W PSMH. Up to 155W C-Lite Traditional Style LED Wall Pack w/ glass lens, with Selectable CCT and wattage, up to 23,500 delivered lumens, dark bronze housing. Field selectable CCT options: 3000K, 4000K or 5000K. Field selectable wattage options: 155W, 121W or 77W. cULus Listed, 5-year limited warranty.
Need to add an emergency backup option? Also available!
Find it here: Emergency Battery Backup Quick Install Kit.
Additional Benefits:
- Borosilicate prismatic glass lens
- Field selectable wattage: 100%, 75% or 50% output
- Field selectable CCT: 3000K, 4000K or 5000K
- Extremely efficient with over 157LPW (Lumens Per Watt) on certain wattages
- Super easy installation - designed with you in mind
- Compatible with the easy to connect BillDa® Emergency Battery Backup Kit (sold separately)
Guides & Info
- Instruction Manual: C-WP-E-TR-SCCT Series Download File
- Spec Sheet: C-WP-E-TR-SCCT Download File
- IES files: C-WP-E-TR-S23L-SCCT series.zip Download File
Specifications
- Applications Entryways, General Area Lighting, Perimeter Lighting, Storage Facilities
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 1
- Certifications cULus, Wet Locations, Dimmable, DLC Premium, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 18-1/4" L x 10" W x 9-1/4" H
- Housing Dark bronze powder coated finish with heavy-duty die-cast aluminum housing.
- Input Voltage Universal (120V - 277V)
- Lens Material Borosilicate prismatic glass lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 23,500 Lumens
- Mounting Details Three 1/2" threaded KO's (Knock Outs) for mounting using surface conduit or mount over a j-box, 3" octagonal or 4" octagonal boxes.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 155W, 121W or 77W
- Replaces 400W PSMH
- Shipping Weight 15.54 (lbs.)
- Typical Mounting Height > 25 feet
- warranty 5-year
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-WP-E-TR-S23L-SCCT-UL-DB
Replaces 400W PSMH
Up to 23,500 Lumens
Emergency battery backup option available
Up to 23,500 Lumens
Emergency battery backup option available
155W, 121W or 77W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
1
Dark bronze powder coated finish with heavy-duty die-cast aluminum housing.
Three 1/2" threaded KO's (Knock Outs) for mounting using surface conduit or mount over a j-box, 3" octagonal or 4" octagonal boxes.
Borosilicate prismatic glass lens
Selectable, 3000K, 4000K, 5000K
E-WPE22A-F50BZ
Replaces 400W PSMH
22,158 Lumens
22,158 Lumens
150W
Universal (120V - 277V)
5-Year
Yes
ETL Listed, Wet Locations, Dimmable, RoHS
N/A
Bronze, die-cast aluminum
Able to mount via j-box or surface conduit
UV resistant polycarbonate lens
5000K
