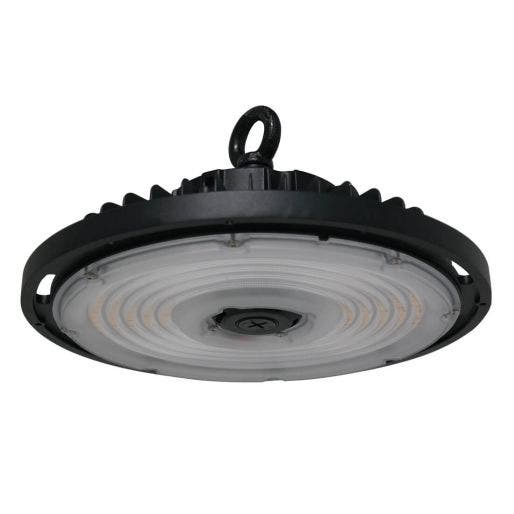

C-Lite Round UFO LED High Bay Light | C-HB-D-RD Series | CCT & Wattage Selectable | Up to 22,000 Lumens | 120-277V | Black
C-Lite Round UFO LED High Bay Light | C-HB-D-RD Series | CCT & Wattage Selectable | Up to 22,000 Lumens | 120-277V | Black
Ships in: 3-5 Days
$99.99
SKU: C-HB-D-RD-S22L-SCCT-UL-BK
Replaces up to 250W PSMH
Up to 22,000 Lumens
Up to 22,000 Lumens
Product Overview
Our C-Lite C-HB-D-RD Series UFO LED High Bay has field selectable CCT and wattage and available with a variety of accessories and mounting options, providing excellent versatility to meet your high bay application needs. Available in a durable, black powder-coat finish, this model delivers up to 22,000 lumens. CCT selectable options: 4000K or 5000K. Wattage selectable options: 100/120/150W. cULus Listed and backed by our 5-year limited warranty.
Additional Benefits:
- Lightweight, compact design
- IK09 Impact Protection Rated PC Lens
- 6kV Surge Protection
- M10 Eyebolt for suspension mounting included
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES Files: C-HB-D-RD-S22L Series Download File
- Instruction Manual: C-HB-D-RD Series Download File
- Spec sheet: C-HB-D-RD Series Download File
Specifications
- Applications Gymnasium, Industrial, Manufacturing, Retail, Storage Facilities
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
- Color Accuracy ≥ 80 CRI
- Dimensions 10-5/8" Dia. x 5-1/2" H (with eyebolt)
- Housing Black powder coated, die-cast aluminum housing
- Input Voltage Universal (120V - 277V)
- Lens Material Clear Polycarbonate
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 22,000 Lumens
- Mounting Details M10 threaded eye-bolt standard. Pendant mount hook and yoke mount options available (sold separately)
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 100/120/150W
- Replaces 250W PSMH
- Shipping Weight 3.76 (lbs.)
- Typical Mounting Height 15 to 25 feet
- warranty 5 year
Accessories
Linear LED High Bay PIR Motion Sensor | E-HBL Series
$22.99
SKU: HD07VR-PH-1
For use with E-HBL and C-HB-D-RD Series only.
PIR & Microwave Sensor Remote
$32.99
SKU: HD05R
For use with select PIR and MW sensors.For use with E-HBL and C-HB-D-RD Series only.
C-Lite Aluminum Reflector | C-HB-D-RD-S22L Series | Small
$29.99
SKU: C-HB-D-RD-ACC-AR-SM
For use with C-HB-D-RD Series
C-Lite Prismatic Reflector | C-HB-D-RD-S22L Series | Small
$59.99
SKU: C-HB-D-RD-ACC-PR-SM
For use with C-HB-D-RD Series
C-Lite Yoke Mount | C-HB-D-RD Series | Black
$19.99
SKU: C-HB-D-RD-ACC-YM-BK
For use with C-HB-D-RD Series
C-Lite Pendant Mount Hook | C-HB-D-RD Series
$19.99
SKU: C-HB-D-RD-ACC-PMH
For use with C-HB-D-RD SeriesHow much light do you need? Create a custom plan with our simple free tools.
