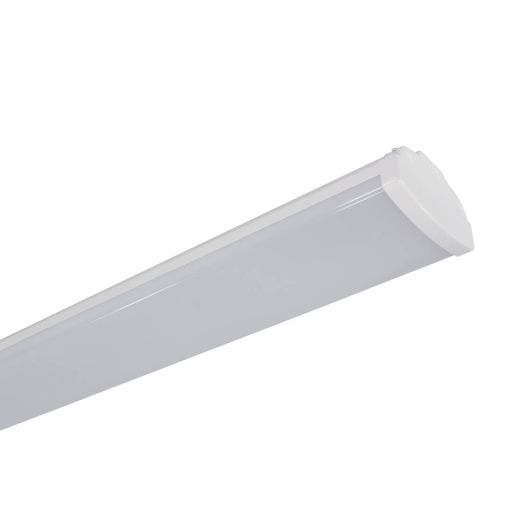

C-Lite LED Wrap Light | Wattage and CCT Selectable | C-WR-B-SCCT Series | Up to 5300 Lumens | 120-277V | White
Your Price $74.99 $79.99
SKU: C-WR-B-WLIN4-53L-SCCT-WH
Replaces 2-Lamp 32WT8
Up to 5300 Lumens
Up to 5300 Lumens
Product Overview
Replaces 2-Lamp 32W T8 fixtures. C-Lite LED Wrap Light with field selectable wattage: 20W/31W/42W and CCT: 3000K/4000K/5000K. Delivers up to 5300 lumens. cULus Listed, 5-year limited warranty.
Additional Benefits:
- 4kV surge protection
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-WR-B-WLIN4-SCCT Series Download File
- Instruction Manual: C-WR-B-WLIN4-SCCT Series Download File
- IES File: C-WR-B-WLIN4-53 (3000K) Download File
- IES File: C-WR-B-WLIN4-53L (4000K) Download File
- IES File: C-WR-B-WLIN4-53L (5000K) Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Storage Facilities, Task & Workshop Lighting, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Damp Locations, Dimmable, DLC Standard, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 47-1/4" L x 6" W x 3-5/8 H
- Housing High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3mil thickness for superior corrosion resistance and maximum environmental durability.
- Input Voltage Universal (120V - 277V)
- Lens Material Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output 5300 Lumens
- Mounting Details Keyhole slots for surface mounting, various knockouts provided for wiring entry
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -40°F (40°C)
- Power Consumption 20W/31W/42W
- Replaces 2 x F32T8
- Shipping Weight 5.84 (lbs.)
- Typical Mounting Height 10-15 Feet
- warranty 5 Year
