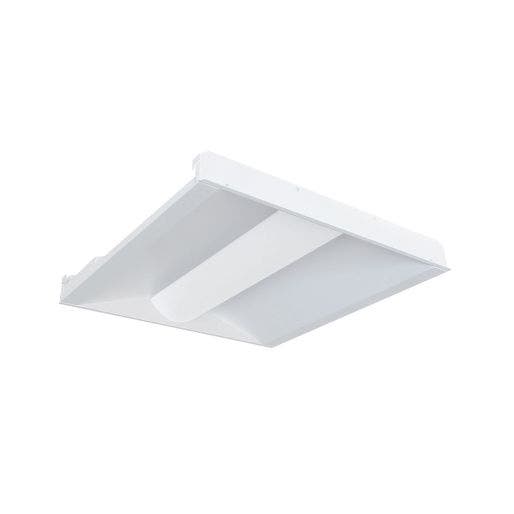

C-Lite LED Troffer w/ Adjustable Color Temperature and Wattage | 2' x 2' | C-TR-B-BT-SCCT Series | 5000 Lumens | CCT Options: 3500K, 4000K, 5000K | White
Your Price $59.99 $87.99
SKU: C-TR-B-BT22-S50L-SCCT-UL-WH
Replaces up to 4 x F17T8 | 2 x F32T8/U6
5000 Lumens
5000 Lumens
Product Overview
Replaces up to 4 x F17T8 | 2 x F32T8/U6. Wattage Selectable (30W/35W/40W) and color temperature (CCT) selectable (3500K/4000K/5000K), 2' x 2' LED Troffer with up to 5000 delivered lumens. White, cULus Listed, 5-year limited warranty.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-TR-B-BT22-SCCT Series Download File
- IES File: C-TR-B-BT22-S50L-SCCT-Ux-WH (30W) Download File
- IES File: C-TR-B-BT22-S50L-SCCT-Ux-WH (35W) Download File
- IES File: C-TR-B-BT22-S50L-SCCT-Ux-WH (40W) Download File
- Instruction Manual: C-TR-B-BT-SCCT Series Download File
Specifications
- Applications Commercial, Educational Setting, Retail
- Case Quantity 4
- Certifications cULus, Damp Locations, Dimmable, DLC Premium, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 23-3/4" L x 23-3/4" W x 2-3/4" H
- Housing Steel construction, white polyester powder-coat finish
- Input Voltage Universal (120V through 277V Operation)
- Lens Material Flexible polycarbonate lens
- Lifespan Estimated >50,000 Hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 5000 Lumens
- Mounting Details Recessed, installs into conventional grid ceilings
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 30W/35W/40W
- Replaces 2 x F32T8/U6, 4 x F17T8
- Shipping Weight 7.70 (lbs.)
- Typical Mounting Height 8-12 Feet
- warranty 5 Year
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-TR-B-BT22-S50L-SCCT-UL-WH
Replaces up to 4 x F17T8 | 2 x F32T8/U6
5000 Lumens
5000 Lumens
30W/35W/40W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
4
Steel construction, white polyester powder-coat finish
Recessed, installs into conventional grid ceilings
Flexible polycarbonate lens
Selectable, 3500K, 4000K, 5000K
C-TR-B-BT22-S37L-SCCT-UL-WH
Replaces up to 3 x F17T8 | 2 x F32T8/U6
3750 Lumens
3750 Lumens
20W/25W/30W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
4
Steel construction, white polyester powder-coat finish
Recessed, installs into conventional grid ceilings
Flexible polycarbonate lens
Selectable, 3500K, 4000K, 5000K
C-TR-B-BT22-S50L-SCCT-UL-WH-EB
Replaces up to 4 x F17T8 | 2 x F32T8/U6
5000 Lumens
5000 Lumens
30W/35W/40W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
4
Steel construction, white polyester powder-coat finish
Recessed, installs into conventional grid ceilings
Flexible polycarbonate lens
Selectable, 3500K, 4000K, 5000K
C-TR-B-BT22-S37L-SCCT-UL-WH-EB
Replaces up to 3 x F17T8 | 2 x F32T8/U6
3750 Lumens
3750 Lumens
20W/25W/30W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
4
Steel construction, white polyester powder-coat finish
Recessed, installs into conventional grid ceilings
Flexible polycarbonate lens
Selectable, 3500K, 4000K, 5000K
