C-Lite LED Area Light w/ 8-inch Direct Arm | CCT & Wattage Selectable | C-AR-A-SAL Series | Type 3 | Up to 30,700 Lumens | Up to 200W | Bronze
Back-Order: Available by 02/25/2025
$229.99
SKU: C-AR-A-SAL3-S30L-SCCT-UL-BZ-DM
Replaces 400W PSMH
Up to 30,700 Lumens
Up to 30,700 Lumens
Product Overview

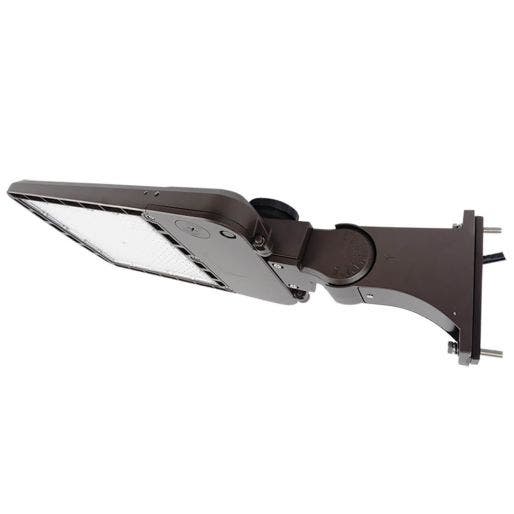

Replaces 400W PSMH. C-Lite LED Area Light w/ 8-inch direct arm mount, w/ field selectable CCT & wattage with 7-pin photocell receptacle, type 3 distribution, up to 30,700 delivered lumens, and bronze housing. Field selectable wattage options: 100W, 143W or 200W. Field selectable CCT options: 3000K, 4000K or 5000K, cULus Listed, 5-year warranty.
Additional Features:
- Includes 7-pin receptacle which complies with ANSI C136.41 standards (7-pin receptacle supports classic 3-pin standard photocells, as well as "smart" photocells for more advanced control strategies)
- Shorting cap included
- Photometric data available for all products
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: C-AR-A-SAL Series Download File
- Spec sheet: C-AR-A-SAL Series with mount Download File
- IES Files: C-AR-A-SAL3-S30L-SCCT-UL-BZ Download File
- Difference between area light distribution patterns (Type III, Type IV, Type V) explained Download File
Specifications
- Applications General Area Lighting, Parking Areas, Perimeter Lighting
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 1
- Certifications cULus, Wet Locations, DLC Premium, RoHS
- Color Accuracy >70 CRI
- Dimensions 18-1/4" L x 11-3/8" W x 4-3/8" H
- Housing Bronze, durable aluminum extruded heat sink and die-cast housing.
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated UV stabalized polycarbonate diffuser lens with Type 3 optical distribution.
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 30,700 Lumens
- Mounting Details 8-inch direct arm
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 100W/143W/200W
- Replaces 400W PSMH
- Shipping Weight 8.70 (lbs.)
- Typical Mounting Height > 25 feet
- warranty 5-year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-AR-A-SAL3-S30L-SCCT-UL-BZ-DM
Replaces 400W PSMH
Up to 30,700 Lumens
Up to 30,700 Lumens
100W/143W/200W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, DLC Premium, RoHS
1
Bronze, durable aluminum extruded heat sink and die-cast housing.
8-inch direct arm
Integrated UV stabalized polycarbonate diffuser lens with Type 3 optical distribution.
Selectable, 3000K, 4000K, 5000K
FXCAL240-840-BZ-3S
Replaces 1000W PSMH
33,600 Lumens
33,600 Lumens
240W
Universal (120V - 277V)
5 Year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, Title 24, RoHS, IP65
N/A
Bronze, die-cast aluminum
Mounting sold separately; Pole mount, 2-inch adjustable slip fitter, yoke mount or wall mount
UV-resistant polycarbonate lens
4000K
FXCAL240-850-BZ-3S
Replaces 1000W PSMH
33,840 Lumens
33,840 Lumens
240W
Universal (120V - 277V)
5 Year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, Title 24, RoHS, IP65
N/A
Bronze, die-cast aluminum
Mounting sold separately; Pole mount, 2-inch adjustable slip fitter, yoke mount or wall mount
UV-resistant polycarbonate lens
5000K
E-APR31B-T340B
200W
Universal (120V - 277V)
3 year
N/A
UL Listed, Wet Locations, Dimmable, RoHS
1
Powder coated bronze die-cast alumimnum housing
Choose between the 2-inch adjustable slip fitter mount (E-APR-B-SF-MNT) or the adjustable direct arm mount (E-APR-B-DIR-MNT).
UV stabilized polycarbonate Lens
4000K
E-APR31B-T350B
200W
Universal (120V - 277V)
3 year
N/A
UL Listed, Wet Locations, Dimmable, RoHS
1
Powder coated bronze die-cast alumimnum housing
Choose between the 2-inch adjustable slip fitter mount (E-APR-B-SF-MNT) or the adjustable direct arm mount (E-APR-B-DIR-MNT).
UV stabilized polycarbonate Lens
5000K
E-APR31B
200W
Universal (120V - 277V)
3 year
N/A
UL Listed, Wet Locations, Dimmable, RoHS
1
Powder coated bronze die-cast alumimnum housing
Choose between the 2-inch adjustable slip fitter mount (E-APR-B-SF-MNT) or the adjustable direct arm mount (E-APR-B-DIR-MNT).
UV stabilized polycarbonate Lens
4000K
