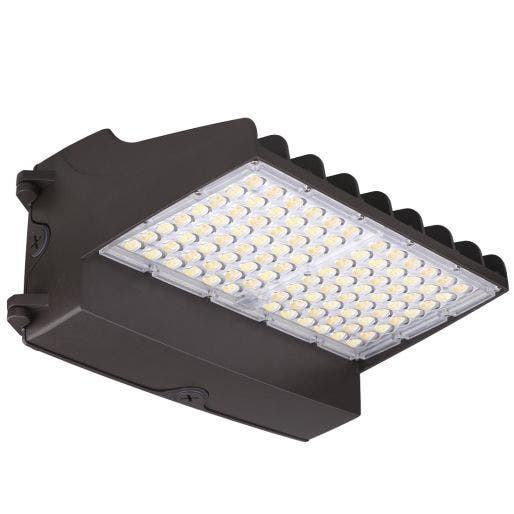

C-Lite Cutoff LED Wall Pack w/ Integrated Photocell | CCT & Wattage Selectable | C-WP-A-ACWP Series | Up to 16,700 Lumens | Bronze
Your Price $109.99 $129.99
SKU: C-WP-A-ACWP-S17L-SCCT-BZ
Replaces 400W MH
Up to 16,700 Lumens
Up to 16,700 Lumens
Product Overview
Replaces 400W MH. C-Lite Cutoff LED Wall Pack with CCT & Wattage Selectability w/ integrated button style photocell with up to 16,700 lumens and bronze housing. Field selectable wattage options: 80W, 90W, 100W, 110W, or 120W. Field selectable CCT options: 3000K, 4000K or 5000K, cULus Listed, 5-year warranty.
Additional Info:
- Wattage Selectable from 80W to 120W
- Integrated button style photocell that can be bypassed if needed
- 0-10V dimmable
- 4kV surge protection
- Very efficient, high LPW (Lumens Per Watt)
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: C-WP-A-ACWP Series Download File
- IES Files: C-WP-A-ACWP-S17L Series Download File
- Spec sheet: C-WP-A-ACWP Series Download File
Specifications
- Applications Perimeter Lighting, Security, Storefront Lighting, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 2
- Certifications cULus, Wet Locations, Dimmable, DLC Premium, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 12-3/4" L x 6-3/8" W x 9-1/2" H
- Housing Bronze die cast aluminum housing with heat fins to dissapate heat and improve life of the product.
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated polycarbonate diffuser lens with individual optics for peak performace
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 16,700 Lumens
- Mounting Details Knockouts provided for mounting over a 3-1/2" or 4" octagonal or single gang junction box. Also comes with appropriate knockouts for mounting using conduit.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 80W/90W/100W/110W/120W
- Replaces 400W MH
- Shipping Weight 6.04 (lbs.)
- Typical Mounting Height 15 to 25 Feet
- warranty 5-year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-WP-A-ACWP-S17L-SCCT-BZ
Replaces 400W MH
Up to 16,700 Lumens
Up to 16,700 Lumens
80W/90W/100W/110W/120W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
2
Bronze die cast aluminum housing with heat fins to dissapate heat and improve life of the product.
Knockouts provided for mounting over a 3-1/2" or 4" octagonal or single gang junction box. Also comes with appropriate knockouts for mounting using conduit.
Integrated polycarbonate diffuser lens with individual optics for peak performace
Selectable, 3000K, 4000K, 5000K
NTW-A-WM-T3-17L-40K-UL-BZ
Replaces 400W MH
17,100 Lumens
17,100 Lumens
111W LED
120-277V
5 Year
Yes
cULus, Wet Locations, Dimmable, RoHS, IP65
N/A
Low copper content, corrosion resistant, 360 cast aluminum alloy housing with polyester powder coat finish
Mounting sold separately. Mounts to a variety of junction box styles: 4" square, 3" and 4" octagonal, single gang, vertical or horizontal mounts. Direct mount to junction box with knockouts and grommet on back.
Impact resistant acrylic
4000K
NTW-A-WM-T3-17L-50K-UL-BZ
Replaces 400W MH
17,100 Lumens
17,100 Lumens
111W LED
120-277V
5 Year
Yes
cULus, Wet Locations, Dimmable, RoHS, IP65
N/A
Low copper content, corrosion resistant, 360° cast aluminum alloy housing with polyester powder coat finish
Mounting sold separately. Mounts to a variety of junction box styles: 4" square, 3" and 4" octagonal, single gang, vertical or horizontal mounts. Direct mount to junction box with knockouts and grommet on back
Impact resistant acrylic
5000K
C-Lite Cutoff LED Wall Pack | C-WP-B-RDC Series | 144W | 4000K | Dark Bronze Your Price $89.97 $113.97
C-WP-B-RDC-20L-40K-DB
Replaces 400W PSMH
20,900 Lumens
20,900 Lumens
144W LED
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Wet Locations, DLC Premium, RoHS
N/A
Heavy duty die-cast aluminum with a durable powder coat dark bronze finish
1/2-inch threaded knockouts provided for conduit entry or mount over a recessed j-box, Knockouts are located on both sides and the top of the back box
Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency on the product
4000K
C-WP-B-RDC-20L-50K-DB
Replaces 400W PSMH
20,900 Lumens
20,900 Lumens
144W LED
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Wet Locations, DLC Premium, RoHS
N/A
Heavy duty die-cast aluminum with a durable powder coat dark bronze finish
1/2-inch threaded knockouts provided for conduit entry or mount over a recessed j-box, Knockouts are located on both sides and the top of the back box
Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency on the product
5000K
LED-FXCWP120/50K/BZ
Replaces 400MH
14,667 Lumens
14,667 Lumens
120W
Universal (120V through 277V Operation)
5-year
Yes
cULus, Wet Locations, DLC Premium, Title 24, RoHS, IP65
N/A
Medium bronze corrosion resistant powder coated durable die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts.
UV stabilized Polycarbonate
5000K
LED-FXCWP80/40K/BZ
Replaces 400MH
9908 Lumens
9908 Lumens
80W
Universal (120V through 277V Operation)
5-year
Yes
cULus, Wet Locations, DLC Premium, Title 24, RoHS, IP65
N/A
Medium bronze corrosion resistant powder coated durable die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts.
UV stabilized Polycarbonate
4000K
LED-FXCWP120/40K/BZ
Replaces 400MH
14,667 Lumens
14,667 Lumens
120W
Universal (120V through 277V Operation)
5-year
Yes
cULus, Wet Locations, DLC Premium, Title 24, RoHS, IP65
N/A
Medium bronze corrosion resistant powder coated durable die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts.
UV stabilized Polycarbonate
4000K
C-WP-C-RDC-S16L-SCCT-DB
Replaces 400W MH
Up to 16,000 Lumens
Emergency battery backup option available
Up to 16,000 Lumens
Emergency battery backup option available
Up to 110W
Universal (120V - 277V)
5-year
No
cULus, Wet Locations, DLC Standard, RoHS
2
Heavy duty die-cast aluminum with a durable powder coat dark bronze finish.
1/2-inch threaded knockouts provided for conduit entry or mount over a recessed j-box. Knockouts are located on both sides and the top of the back box.
Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency.
Selectable, 3000K, 4000K, 5000K
