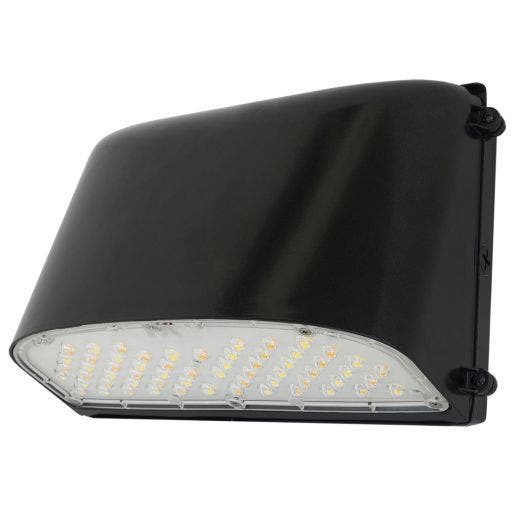

C-Lite Cutoff LED Wall Pack | CCT & Wattage Selectable | C-WP-C-RDC Series | Up to 16,000 Lumens | Dark Bronze
Your Price $124.99 $139.99
SKU: C-WP-C-RDC-S16L-SCCT-DB
Replaces 400W MH
Up to 16,000 Lumens
Emergency battery backup option available
Up to 16,000 Lumens
Emergency battery backup option available
Product Overview
Replaces 400W MH. C-Lite Cutoff LED Wall Pack Light w/ field selectable CCT & wattage with up to 16,000 delivered lumens, and dark bronze housing. Field selectable wattage options: 57W, 88W, or 110W. Field selectable CCT options: 3000K, 4000K or 5000K, cULus Listed, 5-year warranty.
Need to add an emergency backup option? Also available!
Find it here: Emergency Battery Backup Quick Install Kit.
ADDITIONAL INFO:
- 4kV surge protection
- Cree Lighting tested and verified
- Compatible with the easy to connect BillDa® Emergency Battery Backup Kit (sold separately)
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: C-WP-C-RDC Series Download File
- IES Files: C-WP-C-RDC-S16L-SCCT Series Download File
- Spec sheet: C-WP-C-RDC Series Download File
Specifications
- Applications Commercial, Perimeter Lighting, Security
- Emergency Backup Yes
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 2
- Certifications cULus, Wet Locations, DLC Standard, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 14-1/8" L x 9-1/4" W x 7" H
- Housing Heavy duty die-cast aluminum with a durable powder coat dark bronze finish.
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency.
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 16,000 Lumens
- Mounting Details 1/2-inch threaded knockouts provided for conduit entry or mount over a recessed j-box. Knockouts are located on both sides and the top of the back box.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Up to 110W
- Replaces 400W MH
- Shipping Weight 5.61 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5-year
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-WP-C-RDC-S16L-SCCT-DB
Replaces 400W MH
Up to 16,000 Lumens
Emergency battery backup option available
Up to 16,000 Lumens
Emergency battery backup option available
Up to 110W
Universal (120V - 277V)
5-year
No
cULus, Wet Locations, DLC Standard, RoHS
2
Heavy duty die-cast aluminum with a durable powder coat dark bronze finish.
1/2-inch threaded knockouts provided for conduit entry or mount over a recessed j-box. Knockouts are located on both sides and the top of the back box.
Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency.
Selectable, 3000K, 4000K, 5000K
GKOWPG2135W27V40KD
Replaces 400W MH
18,000 Lumens
18,000 Lumens
70W
Universal (120V through 277V Operation)
5 Year
No
UL Listed, Wet Locations, DLC Standard, RoHS
N/A
Bronze, Rugged die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing
4000K
GKOWPG2135W27V50KD
Replaces 400W MH
18,000 Lumens
18,000 Lumens
70W
Universal (120V through 277V Operation)
5 Year
No
UL Listed, Wet Locations, DLC Standard, RoHS
N/A
Bronze, Rugged die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing
5000K
GKOWPG2135W
Replaces 400W MH
18,000 Lumens
18,000 Lumens
70W
Universal (120V through 277V Operation)
N/A
No
UL Listed, Wet Locations, DLC Standard, RoHS
N/A
Bronze, Rugged die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing
N/A
C-WP-A-ACWP-S17L-SCCT-BZ
Replaces 400W MH
Up to 16,700 Lumens
Up to 16,700 Lumens
80W/90W/100W/110W/120W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
2
Bronze die cast aluminum housing with heat fins to dissapate heat and improve life of the product.
Knockouts provided for mounting over a 3-1/2" or 4" octagonal or single gang junction box. Also comes with appropriate knockouts for mounting using conduit.
Integrated polycarbonate diffuser lens with individual optics for peak performance
Selectable, 3000K, 4000K, 5000K
E-WFC15B-F50BZ
Replaces 400W MH
14,954 Lumens
14,954 Lumens
100W
Universal (120V - 277V)
3 Year
Yes
ETL Listed, Wet Locations, Dimmable, RoHS
4
Durable die-cast aluminum housing with bronze powder coat finish to corrosion resistance
Can be mounted over a 3" octagonal or 4" square or octagonal j-box. Can also be mounted via surface conduit feed through one of the 3 x 1/2" knockouts located on the backbox.
UV-resistant polycarbonate lens
5000K
