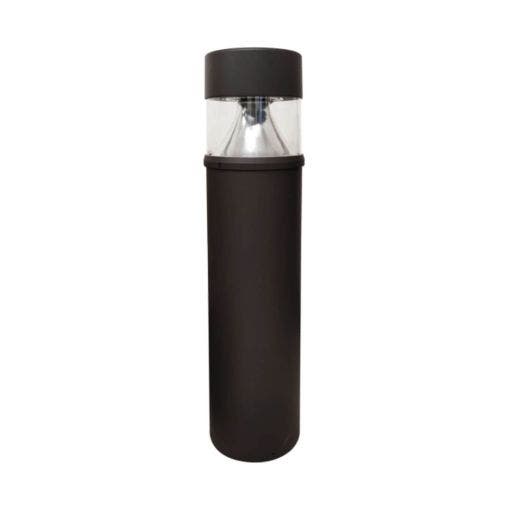

C-Lite 8-inch Round LED Bollard | Flat Top | C-BD-B Series | Up to 4818 Lumens | CCT Selectable | Bronze
Ships in: 1-3 Days
$354.99
SKU: C-BD-B-GRRD-FL-S5L-SCCT-UL-BZ
Replaces 150W PSMH
Up to 4818 Lumens
Up to 4818 Lumens
Product Overview
C-Lite CCT Selectable & Wattage Selectable Flat Top LED Bollard with up to 4818 lumens and bronze housing. Wattage Selectable options: 20W, 28W or 37W. Field selectable CCT options: 3000K, 4000K or 5000K, 5-year warranty.
Additional Benefits:
- Aluminum reflector designed to reduce glare and produce an even distribution
- Quick disconnect located near the terminal block for simple connection to the LED driver
- Easy access to the control switch for a range of CCTs and wattages to choose from
- Versatile mounting plate allows for easy installation and replacement for any project or development
Guides & Info
- IES Files: C-BD-B-GRRD-FL-S5L-SCCT-UL-BZ Download File
- Spec sheet: C-BD-B-GRRD Series Download File
- Instruction Manual: C-BD-B-GRRD Series Download File
- Anchor Bolt Template: C-BD-B-GRRD Series Download File
Specifications
- Applications Entryways, General Area Lighting, Pathways & Walkways
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications Wet Locations, IP66
- Color Accuracy ≥ 80 CRI
- Dimensions 36” H x 8” W
- Housing Powder coated bronze, with die-cast aluminum housing
- Input Voltage Universal (120V - 277V)
- Lens Material Clear UV resistant polycarbonate lens allows for optimal light transmission and protects the light engine compartment from harsh environments
- Lifespan Estimated > 54,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 4818 Lumens
- Mounting Details Easy install using supplied anchor bolts (3 bolt system) and templates
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Wattage Selectable- 20W, 28W, 37W
- Replaces 150W PSMH
- Shipping Weight 18.77 (lbs.)
- Product Weight 16.02 lbs.
- warranty 5 year
