C-Lite 4-foot Linear LED Strip Light w/ Emergency Battery Backup | CCT & Wattage Selectable | 120-277V | C-STRIP-B Series | Up to 5650 Lumens | White
Your Price $124.99 $141.99
SKU: C-STRIP-B-LIN4-S56L-SCCT-UL-WH-EB
Replaces 1 x F54T5HO
Up to 5650 Lumens
Up to 5650 Lumens
Product Overview

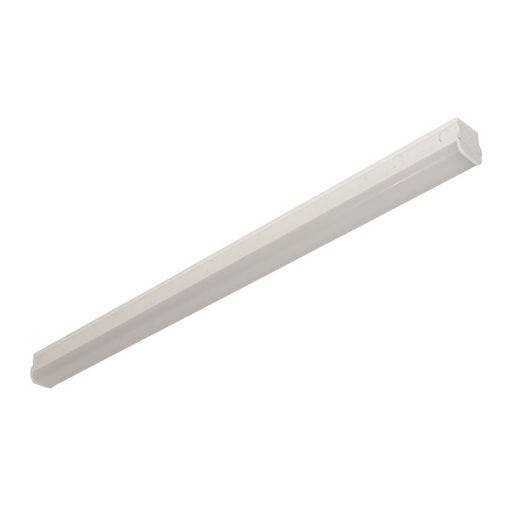

Replaces 1 x F54T5HO. C-Lite 4-foot Linear LED Strip Light with integrated 4W emergency battery backup with field selectable CCT: 3000K/4000K/5000K and wattage: 22W/33W/45W delivering up to 5650 lumens. cULus Listed, 5-year limited warranty.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-STRIP-B-SCCT Series Download File
- Instruction Manual: C-STRIP-B-LIN Series Download File
- IES File: C-STRIP-B-LIN4-S56L-SCCT-UL-WH (22W) Download File
- IES File: C-STRIP-B-LIN4-S56L-SCCT-UL-WH (33W) Download File
- IES File: C-STRIP-B-LIN4-S56L-SCCT-UL-WH (45W) Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Retail, Storage Facilities, Task & Workshop Lighting, Warehouses
- Emergency Backup Yes
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications cULus, Damp Locations, Dimmable, DLC Standard, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 48" L x 3" W x 2-5/8" H
- Housing High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3-mil thickness for superior corrosion resistance and maximum environmental durability.
- Input Voltage Universal (120V - 277V)
- Lens Material Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output Up to 5650 Lumens
- Mounting Details Keyhole slots for surface mounting; or suspended mounting using hook and chain (sold separately)
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum 32°F (0°C)
- Power Consumption 22W/33W/45W
- Replaces 1 x F54T5HO
- Shipping Weight 4.12 (lbs.)
- Typical Mounting Height 10 to 15 Feet
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-STRIP-B-LIN4-S56L-SCCT-UL-WH-EB
Replaces 1 x F54T5HO
Up to 5650 Lumens
Up to 5650 Lumens
22W/33W/45W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
6
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3-mil thickness for superior corrosion resistance and maximum environmental durability.
Keyhole slots for surface mounting; or suspended mounting using hook and chain (sold separately)
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3000K, 4000K, 5000K
E-LSWS05A-4USCCTW-EB
Replaces 1-lamp T5HO fixtures
Up to 5000 Lumens
Up to 5000 Lumens
25W/30W/35W
Universal (120V - 277V)
5 year
Yes
cULus, UL Listed, Damp Locations, Dimmable, RoHS
1
White powder coated steel housing
Keyhole slots for surface mounting to ceiling or wall
PMMA lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
E-LSWS05A
Replaces 1-lamp T5HO fixtures
Up to 5000 Lumens
Up to 5000 Lumens
25W/30W/35W
Universal (120V - 277V)
5 year
Yes
cULus, UL Listed, Damp Locations, Dimmable, RoHS
1
White powder coated steel housing
Keyhole slots for surface mounting to ceiling or wall
PMMA lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
