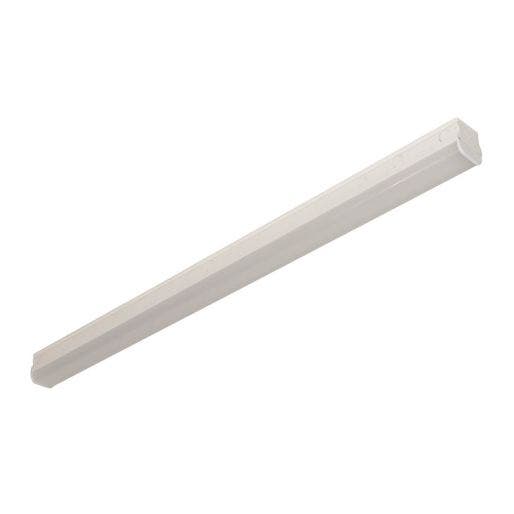

C-Lite 4-foot Linear LED Strip Light | CCT & Wattage Selectable | 120-277V | C-STRIP-B Series | Up to 5650 Lumens | White
Back-Order: Available by 01/21/2025
Your Price $64.99 $76.99
SKU: C-STRIP-B-LIN4-S56L-SCCT-UL-WH
Replaces 1 x F54T5HO
Up to 5650 Lumens
Up to 5650 Lumens
Product Overview
Replaces 1 x F54T5HO. C-Lite 4-foot Linear LED Strip Light with field selectable CCT: 3000K/4000K/5000K and wattage: 22W/33W/45W delivering up to 5650 lumens. cULus Listed, 5-year limited warranty.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-STRIP-B-SCCT Series Download File
- Instruction Manual: C-STRIP-B-LIN Series Download File
- IES File: C-STRIP-B-LIN4-S56L-SCCT-UL-WH (22W) Download File
- IES File: C-STRIP-B-LIN4-S56L-SCCT-UL-WH (33W) Download File
- IES File: C-STRIP-B-LIN4-S56L-SCCT-UL-WH (45W) Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Retail, Storage Facilities, Task & Workshop Lighting, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications cULus, Damp Locations, Dimmable, DLC Standard, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 48" L x 3" W x 2-5/8" H
- Housing High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3-mil thickness for superior corrosion resistance and maximum environmental durability.
- Input Voltage Universal (120V - 277V)
- Lens Material Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output Up to 5650 Lumens
- Mounting Details Keyhole slots for surface mounting; or suspended mounting using hook and chain (sold separately)
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (40°C)
- Power Consumption 22W/33W/45W
- Replaces 1 x F54T5HO
- Shipping Weight 3.76 (lbs.)
- Typical Mounting Height 10 to 15 Feet
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-STRIP-B-LIN4-S56L-SCCT-UL-WH
Replaces 1 x F54T5HO
Up to 5650 Lumens
Up to 5650 Lumens
22W/33W/45W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
6
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3-mil thickness for superior corrosion resistance and maximum environmental durability.
Keyhole slots for surface mounting; or suspended mounting using hook and chain (sold separately)
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3000K, 4000K, 5000K
E-LSWS05A-4USCCTW
Replaces 1-lamp T5HO fixtures
Up to 5000 Lumens
Up to 5000 Lumens
25W/30W/35W
Universal (120V - 277V)
5 year
Yes
cULus, UL Listed, Damp Locations, Dimmable, RoHS
6
White powder coated steel housing
Keyhole slots for surface mounting to ceiling or wall
PMMA lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
C-SW-B-S60L-SCCT-UL-WH
Replaces 1-Lamp T5HO 54W
Up to 6000 Lumens
Up to 6000 Lumens
30W/35W/45W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, RoHS
4
White, powder-coated steel housing
Keyhole slots for surface mounting. Mounting hardware supplied by end user
Integrated frosted PMMA (polymethyl methacrylate) diffuser lens
Selectable, 4000K, 5000K
SM10928
Replaces 1-Lamp T5HO 54W
Up to 5985 Lumens
Up to 5985 Lumens
34W/38W/45W
Universal (120V - 277V)
5 years
Yes
UL Listed, Damp Locations, Dimmable, RoHS
6
White, powder-coated steel housing
Suitable for surface mount or suspension mount applications. Each fixture is supplied with a pair of surface mount brackets. Fixtures are designed for individual or continuous row mounting.
Integrated frosted PMMA (polymethyl methacrylate) diffuser lens
Selectable, 3500K, 4000K, 5000K
FXCSL44SW-48FR-8CCT3-MV
Replaces 1-lamp T5HO fixtures
Up to 6204 Lumens
Up to 6204 Lumens
22W/28W/36W/44W
Universal (120V - 277V)
5 Year
Yes
UL Listed, Damp Locations, Dimmable, DLC Premium, Title 24
8
White powder coated finish, stamped aluminum
Keyhole slots for surface mount, v-hooks included for suspensions (chain provided by others)
Integrated frosted polycarbonate diffuser lens
Selectable, 3500K, 4000K, 5000K
C-SW-B-S60L-SCCT-UL-WH-MW
Replaces 1-Lamp T5HO 54W
Up to 6000 Lumens
Up to 6000 Lumens
30W/35W/45W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, RoHS
4
White, powder-coated steel housing
Keyhole slots for surface mounting. Mounting hardware supplied by end user
Integrated frosted PMMA (polymethyl methacrylate) diffuser lens
Selectable, 4000K, 5000K
C-SW-B-S60L-SCCT
Replaces 1-Lamp T5HO 54W
Up to 6000 Lumens
Up to 6000 Lumens
30W/35W/45W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, RoHS
4
White, powder-coated steel housing
Keyhole slots for surface mounting. Mounting hardware supplied by end user
Integrated frosted PMMA (polymethyl methacrylate) diffuser lens
Selectable, 4000K, 5000K
E-LSN05C-4U840
Replaces 1-Lamp T5HO fixtures
5200 Lumens
5200 Lumens
40W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
8
White powder coated steel housing
Keyhole slots designed for surface mounting to a ceiling or wall.
Integrated frosted polycarbonate diffuser lens
4000K
E-LSN05C-4U850
Replaces 1-Lamp T5HO fixtures
5200 Lumens
5200 Lumens
40W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
8
White powder coated steel housing
Keyhole slots designed for surface mounting to a ceiling or wall.
Integrated frosted polycarbonate diffuser lens
5000K
E-LSN05C
Replaces 1-Lamp T5HO fixtures
5200 Lumens
5200 Lumens
40W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
8
White powder coated steel housing
Keyhole slots designed for surface mounting to a ceiling or wall.
Integrated frosted polycarbonate diffuser lens
5000K
SM10928-6
Replaces 1-Lamp T5HO 54W
Up to 5985 Lumens
Up to 5985 Lumens
34W/38W/45W
Universal (120V - 277V)
5 years
Yes
UL Listed, Damp Locations, Dimmable, RoHS
6
White, powder-coated steel housing
Suitable for surface mount or suspension mount applications. Each fixture is supplied with a pair of surface mount brackets. Fixtures are designed for individual or continuous row mounting.
Integrated frosted PMMA (polymethyl methacrylate) diffuser lens
Selectable, 3500K, 4000K, 5000K
