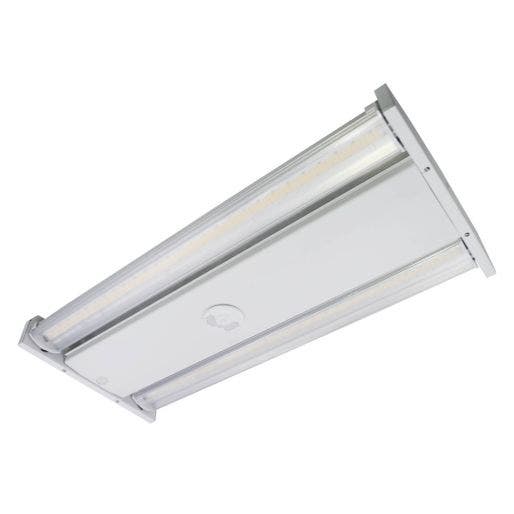

C-Lite Linear LED High Bay Light w/ Factory Installed Options | C-HB-A-LB2 Series | CCT & Wattage Selectable | Up to 26,200 Lumens | 120-277V | White
Your Price $149.99 - $384.99 $159.99 - $384.99
SKU: C-HB-A-LB2-S24L-SCCT-UL
Replaces 6-Lamp - T5HO 54W
Up to 26,200 Lumens
Up to 26,200 Lumens
Product Overview
Replace 6-lamp T5HO linear fluorescent. C-Lite Linear LED High Bay Light with CCT & Wattage Selectable options, optional emergency battery backup and optional 6-foot cord, up to 26,200 delivered lumens, 180W, white housing. CCT Selectable options: 4000K, 4500K, 5000K. Wattage selectable options: 85W, 125W and 180W. 120-277V operation, cULus Listed, 5-year limited warranty.
Additional Benefits:
- Enclosed LED light bar design prevents dust and bug intrusion
- Light bars pivot up to 180° to provide up-lighting or wider light distribution
- Tool-less entry to wiring compartment simplifies installation
- 20W Emergency battery backup provides 90 minutes of emergency lighting during power outages
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: C-HB-A-LB2-SCCT Series with Emergency Backup Download File
- IES Files: C-HB-A-LB2-S24L Series Download File
- Spec sheet: C-HB-A-LB2 Series Download File
Specifications
- Applications Gymnasium, Industrial, Retail, Warehouses
- Emergency Backup No
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Damp Locations, Dimmable, DLC Premium, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 26" L x 12" W x 3-3/8" H
- Housing Housing frame is stamped aluminum with a high reflectance, white powder-coat finish. Light bar housings and wiring compartment made from extruded aluminum.
- Input Voltage Universal (120V - 277V)
- Lens Material Polycarbonate
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 26,200 Lumens
- Mounting Details V-Hooks (2) included, chains sold separately. Pendant/conduit mount supplied by others.
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 180 W
- Replaces 6 x F54T5HO
- Shipping Weight 8.30 (lbs.)
- Typical Mounting Height 15 to 25 feet
- warranty 5 Year
