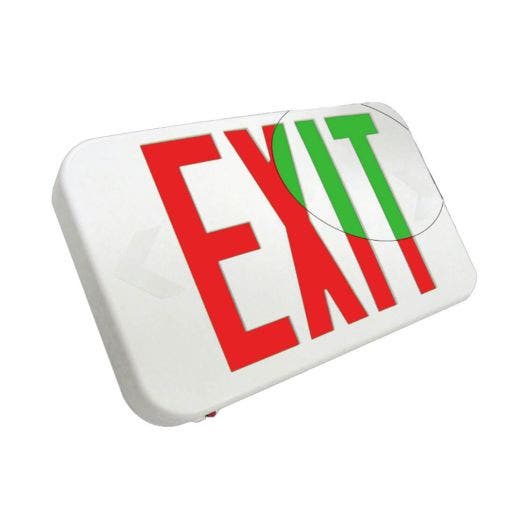

C-Lite Compact LED Exit Sign | Battery Backup | Red & Green Letters | Black or White
$21.99 - $26.99
SKU: C-EE-B-EX-DF-REDGRN-BB
Both red & green letters are included.
Product Overview
C-Lite LED Compact Exit Sign with black or white housing. Both red and green letters, single or double face, battery backup, manual-test diagnostics, UL listed, 5-year limited warranty.
Additional Benefits:
- Includes sealed, 3.6V maintenance-free nickel cadmium battery backup (90 min.), hardware and mounting plate
- Meets Title 20, UL924, NFPA 101 Life Safety Code, NEC & OSHA codes
- Both red and green letters provided
Guides & Info
- You must configure your product to download IES file.
- Spec sheet: C-EE-B-EX-DF (Compact) Series Download File
- Instruction Manual: C-EE-B-EX Series Download File
Specifications
- Applications General Purpose Emergency Lighting
- Factory Installed Emergency Backup Yes
- Emergency Backup Yes
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications UL Listed, Damp Locations, Title 20
- Dimensions 11-5/8" L x 7-1/18" H x 1-7/8" D
- Housing High-impact resistant thermoplastic in black finish. Injection-molded, engineering grade, 5VA flame retardant.
- Input Voltage 120V or 277V
- Light Output 154 Lumens
- Mounting Details Snap-in canopy plate provided for top and side/end mounting. Back faceplate with universal knock-out pattern provided for surface mount
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum 32°F (0°C)
- Power Consumption 1W
- Shipping Weight 2.20 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5 year
