C-Lite LED Exit & Emergency Light Combo | Battery Backup | Red Letters | Remote Capability Option | Self Test Option | Black or White
$44.99 - $74.99
SKU: C-EE-B-EX-2LDF-RED-BB
Product Overview

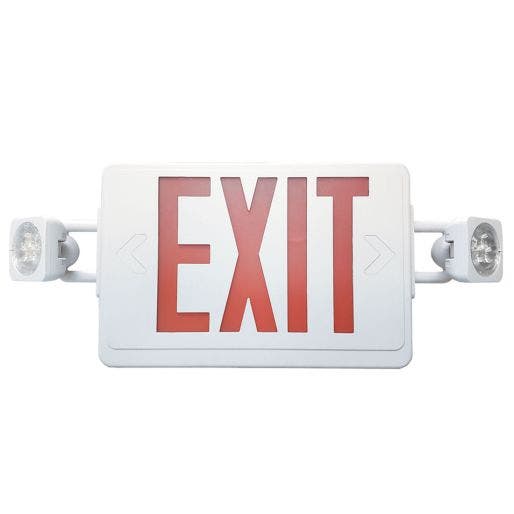

C-Lite LED Exit & Emergency Light Combo with black or white housing. Red letters, single or double face, battery back-up, remote capability option, self-test option, UL listed, 5-year limited warranty.
Additional Benefits:
- Includes sealed, 3.6V maintenance-free nickel cadmium battery backup (90 min.), hardware and mounting plate
- Meets Title 20, UL924, NFPA 101 Life Safety Code, NEC & OSHA codes
Guides & Info
- You must configure your product to download IES file.
- Spec sheet: C-EE-B-EX-2LDF Series Download File
- Instruction Manual: C-EE-B-EX-2LDF Series Download File
- IES File: C-EE-B-EX-2LDF and C-EE-B-EMG-2L-BB Series Download File
Specifications
- Applications General Purpose Emergency Lighting
- Factory Installed Emergency Backup Yes
- Emergency Backup Yes
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications UL Listed, Damp Locations, Title 20
- Dimensions 17" L x 8" H x 3" D
- Housing High-impact resistant thermoplastic in black or white finish. Injection-molded, engineering grade, 5VA flame retardant.
- Input Voltage 120V or 277V
- Light Output 154 Lumens
- Mounting Details Snap-in canopy plate provided for top and side/end mounting. Back faceplate with universal knock-out pattern provided for surface mount
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum 32°F (0°C)
- Power Consumption 1.2W
- Shipping Weight 3.00 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5 year
