C-Lite LED Stair Sign | C-EE-A-CHI Series | Single or Double Face Steel | Battery Backup or AC Only | White
OOS
Your Price $104.99 - $139.99 $111.99 - $149.99 SKU: C-EE-A-CHI-STR-SFC
Chicago approved
Glass panels with arrows sold separately
Glass panels with arrows sold separately
Product Overview

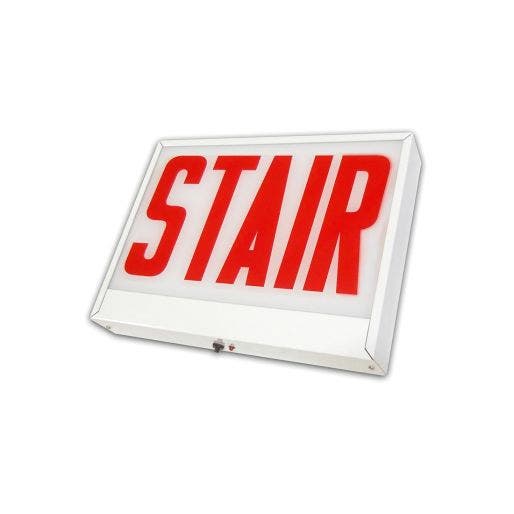

5W Chicago approved steel LED stair sign; single face with 6" red letters and white housing. 120V-277V AC power and battery back-up.
Recommended Use
- For general purpose exit identification in indoor commercial, retail, or industrial applications in the City of Chicago.
Guides & Info
- You must configure your product to download IES file.
- Spec sheet: C-EE-A-CHI-EX-SFC-SF/DF Series Download File
- Instruction Manual: C-EE-A-CHI-EX_STR-SF_DF Series Download File
Specifications
- Applications General Purpose Emergency Lighting
- Emergency Backup Yes
- Case Quantity 4
- Certifications UL Listed, Damp Locations
- Dimensions 13-7/8" W x 11-1/4" H x 2-3/8" D
- Input Voltage 120V or 277V
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25ËšC (77ËšF)
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum 32°F (0°C)
- Shipping Weight 8.00 (lbs.)
- Typical Mounting Height See Local Code
- warranty 5 Year
