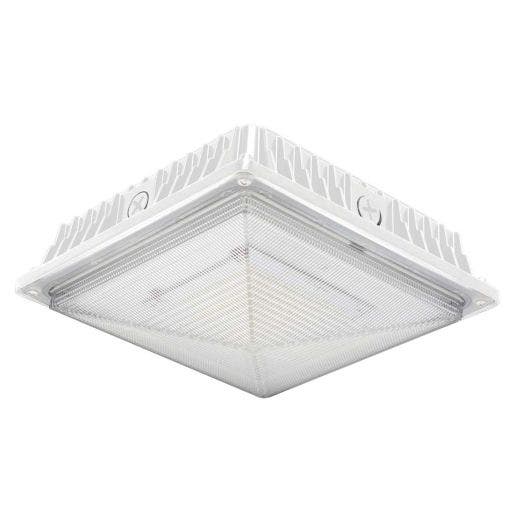

C-Lite LED Canopy Light | CCT & Wattage Selectable | C-CP-D-SQ Series | Up to 6710 Lumens | Dark Bronze or White
$79.99
SKU: C-CP-D-SQ-S6L-SCCT
Replaces 175W MH
Up to 6710 Lumens
Up to 6710 Lumens
Product Overview
Replaces 175W MH. Up to 45W C-Lite Square LED Canopy Light with CCT & Wattage Selectability, Type VS Distribution, up to 6710 lumens, dark bronze or white housing. Field selectable CCT options: 3000K, 4000K or 5000K. Field selectable wattage options: 50%,75%,100% lumen output, cULus Listed, 5-year limited warranty.
ADDITIONAL BENEFITS:
- Wattage Selectable: 50%, 75% or 100% lumen output
- CCT Selectable: 3000K, 4000K or 5000K
- Mounts to surface, pendant, or j-box
- Photometric data available
- Polyester powder-coat finish provides corrosion protection for long-lasting color
- UV Stabilized acrylic lens designed to last
Guides & Info
- You must configure your product to download IES file.
- Spec sheet: C-CP-D-SQ-SCCT Series Download File
- Instruction Manual: C-CP-D-SQ-S3L, S6L, S9L Series Download File
- IES Files: C-CP-D-SQ-S6L-SCCT series Download File
Specifications
- Applications Entryways, Exterior Canopies, Perimeter Lighting, Security
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications cULus, Wet Locations, DLC Premium, RoHS, IP65
- Color Accuracy ≥ 70 CRI
- Dimensions 10" L x 10" W x 4" H
- Housing White, low copper die-cast aluminum housing, polyester powder-coat
- Input Voltage Universal (120V - 277V)
- Lens Material UV-stabilized acrylic lens
- Lifespan Estimated > 54,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 6710 Lumens
- Mounting Details Surface and pendant; knockouts provided for mounting directly to 4" octagonal or square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Up to 45W
- Replaces 175W MH
- Shipping Weight 4.73 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5 year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-CP-D-SQ-S6L-SCCT
Replaces 175W MH
Up to 6710 Lumens
Up to 6710 Lumens
Up to 45W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, DLC Premium, RoHS, IP65
6
White, low copper die-cast aluminum housing, polyester powder-coat
Surface and pendant; knockouts provided for mounting directly to 4" octagonal or square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
UV-stabilized acrylic lens
Selectable, 3000K, 4000K, 5000K
E-CSF10A-WSCCTBZ
Replaces 250W MH
Up to 10,506 Lumens
Up to 10,506 Lumens
Up to 73W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
6
Die cast aluminum housing with dark bronze powder coat finish
Mounting options include surface mounting and pendant mounting using 3/4" electrical conduit.
Polycarbonate Lens
Selectable, 3000K, 4000K, 5000K
E-CSF10A-WSCCTWH
Replaces 250W MH
Up to 10,506 Lumens
Up to 10,506 Lumens
Up to 73W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
6
Die cast aluminum housing with dark bronze powder coat finish
Mounting options include surface mounting and pendant mounting using 3/4" electrical conduit.
Polycarbonate Lens
Selectable, 3000K, 4000K, 5000K
GKOCP0360W27V50KWDPG
Replaces 250W MH
7500 Lumens
7500 Lumens
60W
Universal (120V - 277V)
5 year
No
cULus, Wet Locations, DLC Premium, RoHS
6
Rugged die-cast aluminum white housing with integral heat sink fins. Housing has direct contact with the driver to help maintain low temperature and long lifespan and is completely sealed against moisture and environmental contaminants.
Surface mount or pendant pount options available with a quick-mount bracket included; eliminating the need to open the fixture.
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing.
5000K
