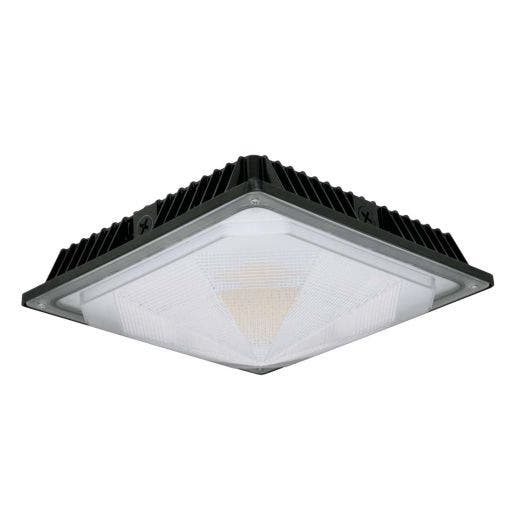

C-Lite LED Canopy Light | Wattage Selectable | C-CP-D-SQ Series | Up to 13,500 Lumens | 4000K or 5000K | Dark Bronze or White
OOS
$139.99 SKU: C-CP-D-SQ-13L
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Product Overview
Replaces 250W PSMH. Up to 88W C-Lite Square LED Canopy Light with Wattage Selectability, Type VS Distribution, up to 13,500 lumens, 4000K or 5000K, dark bronze or white housing. Field selectable wattage options: 50%,75%,100% lumen output, cULus Listed, 5-year limited warranty.
Additional Benefits:
- Wattage Selectable: 50%, 75% or 100% lumen output
- Mounts to surface, pendant, or j-box
- Photometric data available
- Polyester powder-coat finish provides corrosion protection for long-lasting color
- UV Stabilized acrylic lens designed to last
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: C-CP-D-SQ-S13L Series Download File
- Spec sheet: C-CP-D-SQ-SCCT Series Download File
- IES Files: C-CP-D-SQ-13L-40K Download File
- IES Files: C-CP-D-SQ-13L-50K Download File
Specifications
- Applications Entryways, Exterior Canopies, Perimeter Lighting, Security
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications cULus, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
- Color Accuracy ≥ 70 CRI
- Dimensions 13 1/4" L x 13 1/4" W x 5" H
- Housing Dark bronze or white, low copper die-cast aluminum housing, polyester powder-coat
- Input Voltage Universal (120V - 277V)
- Lens Material UV-stabilized acrylic lens
- Lifespan Estimated > 54,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 13,500 Lumens
- Mounting Details Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Â Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Up to 88W
- Replaces 250W MH
- Shipping Weight 9.10 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5 year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Additional Documents
C-CP-D-SQ-13L
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Up to 88W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
6
Dark bronze or white, low copper die-cast aluminum housing, polyester powder-coat
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Â Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
UV-stabilized acrylic lens
GKOFR20W27V40KBDNFL
Replaces 70W MH
2500 Lumens
2500 Lumens
20W
Universal (120V - 277V)
5 Year
No
UL Listed, Wet Locations, DLC Standard, RoHS
12
Dark Bronze, rugged die-cast aluminum housing
Mounting included. 1/2-inch adjustable fitter included for use with 1/2-inch NPS threaded mounting
Tempered shatter-resistant glass lens
GKOFR20W27V50KBDNFL
Replaces 70W MH
2500 Lumens
2500 Lumens
20W
Universal (120V - 277V)
5 Year
No
UL Listed, Wet Locations, DLC Standard, RoHS
12
Dark Bronze, rugged die-cast aluminum housing
Mounting included. 1/2-inch adjustable fitter included for use with 1/2-inch NPS threaded mounting
Tempered shatter-resistant glass lens
E-FFD02A-SW50Z
Replaces 70W MH
2250 Lumens
2250 Lumens
24W
120V
5 Year
N/A
cULus, Wet Locations, RoHS
N/A
Dark bronze, powder coated die-cast aluminum housing
Comes equipped with a 1/2-inch adjustable fitter mount
Tempered glass
